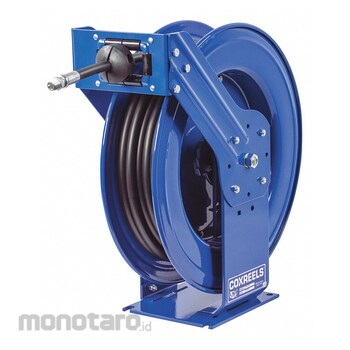

COXREELS Oil & Hydraulic Oil Spring-Return Hose Reels
#Grup produk P109428279
Sebelum PPN:
Rp23.999.900 - Rp61.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40142121 |
|---|---|
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion-Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| For Dual Hose | No |
| Hose Reel Primary Application | Oil |
| Hose Reel Type | Wall Mount Hose Reel |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Minimum Operating Temperature (°F) | -40 |
| Mount Base Height (inch) | 9 |
| Mount Base Width (inch) | 8 |
| Mount Hole Diameter (inch) | 1/2 |
| Mounting Hole Center to Center Height (inch) | 8 |
| Mounting Hole Center to Center Width (inch) | 7 |
| Number of Guide Arms | Double Arm |
| Number of Mount Holes | 4 |
| Pedestal Type | Dual Pedestal |
| Reel Color | Blue |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Speed Limited Retraction | No |
| Standards | CE |
| Swivel Inlet Gender | Female |
| Swivel Inlet Type | NPT |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Truck-mount oil spring-return hose reels are built with an extra-large chassis, dual-pedestal-style arms, and dual-axle support system that reduces vibration during use. The steel housing is powder-coated for corrosion resistance, and includes an external fluid path, brass 90° full-flow NPT swivel inlets, and nitrile seals. These medium-pressure (500-3000 psi) reels mount on a truck and include an adjustable guide arm. Truck-mount oil hose reels are used with hoses suitable for on- and off-road applications, on utility vehicles, and at construction sites.
Feature
Spring Return Hose Reel Oil 1 500 psi Hose Capacity 75 ft (3/4 in I.D.) Drive Type Spring Return Enclosed No Includes Hose Yes Hose Inside Dia 3/4 in Hose Length 75 ft Reel Material Steel Mounting Location Ceiling Floor Truck Wall Speed Limited Retraction No Overall Height 25 1/2 in Overall Length 24 in Overall Width 12 1/2 in Corrosion-Resistant Yes For Dual Hose No Hose Color Black Hose Cover Material Synthetic Rubber Hose Fitting A Gender MaleUlasan Produk
