FRIEDRICH Multizone Ductless Mini-Split Air Conditioner Components
#Grup produk P109427456
Sebelum PPN:
Rp21.999.900 - Rp35.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40101701 |
|---|---|
| Amps (A) | 6.3 |
| Compressor Type | Rotary/Inverter |
| Control Type | Electronic |
| Control Voltage (VDC) | 12 |
| Cooling Capacity (BtuH) | 18000 |
| For use with | Multi Zone Outdoor Units |
| Frequency (Hz) | 60 |
| HSPF (BTU/Wh) | 10 |
| Heating Method | Heat Pump |
| Liquid Line Size (inch) | 1/4 |
| Max. Time Delay Fuse Amps (A) | 30 |
| Maximum Vertical Line Length (ft) | 49 |
| Number Of Indoor Units Supported | 1 |
| Operation Mode - HVAC | Cooling/Heating |
| Phase | 1 |
| Product Type | Split System Air Handler with Heat Pump |
| Programming Capability | Daily Schedules |
| Refrigerant Precharge (oz) | 25 |
| Refrigerant Type | R-410A |
| Remote Control Functions | Full Function |
| Requires | Power and Communication Cable; Refrigerant Line Set for New Installation |
| Seacoast Corrosion Protection | Front and Rear Coil |
| Smart Connectivity | WiFi Control |
| Standards | AHRI; ETL |
| Suction Line Size (inch) | 1/2 |
| Voltage (V AC) | 208/230 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

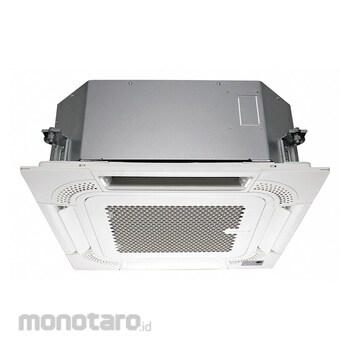

These indoor air handlers install into a ceiling to distribute cooled or heated air from overhead within a room or area. Multiple air handlers can be connected to an outdoor condenser of sufficient capacity to form a multizone mini-split system for cooling more than one room. These ceiling-mount cassette air handlers are commonly installed in the center of a room within a cutout or drop ceiling, so that most of the air handler is hidden within the ceiling.
Feature
Split System Air Handler with Heat Pump Average Coverage Area 700 to 1 000 sq ft Ceiling-Mount Number Of Indoor Units Supported 1 Operation Mode - HVAC Cooling/Heating 18 000 BtuH Heating Method Heat Pump Heating Capacity - Electric 11 942 BtuH Heating Capacity - Heat Pump 21 200 BtuH Heating Watts 2 500 W Air Flow 380/457/588 cfm 19 SEER 12.5 EER 10 BTU/Wh HSPF 6.3 A Amps 208/230V AC 1 Phase 60 Hz Hz Control Type Electronic Control Voltage 12V DCUlasan Produk
