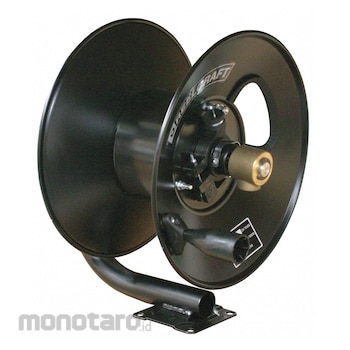

REELCRAFT Multipurpose Hand-Crank Hose Reels
#Grup produk P109427377
Spesifikasi
| UNSPSC | 40142121 |
|---|---|
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Drive Type | Hand Crank |
| Enclosed | No |
| Fasteners Included | No |
| Features | Designed For Lighter-Duty Applications That Require Longer Lengths of Low Pressure Air Hose |
| For Dual Hose | No |
| Handle Length (inch) | 3-1/8 |
| Hose Capacity (ft) | 100 |
| Hose Capacity (in I.D.) | 3/8 |
| Hose Reel Primary Application | Air; Garden; Pre-Rinse; Washdown; Water |
| Hose Reel Type | Free Standing Hose Reel; Vehicle Mount Hose Reel; Wall Mount Hose Reel |
| Includes | Instructions |
| Includes Gooseneck | No |
| Includes Hose | No |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Maximum Operating Pressure | 5000 |
| Maximum Operating Temperature (°F) | 210 |
| Minimum Operating Temperature (°F) | -40 |
| Mount Base Height (inch) | 4-1/4 |
| Mount Base Width (inch) | 4-1/4 |
| Mount Hole Diameter (inch) | 7/16 |
| Mounting Hole Center to Center Height (inch) | 3-1/2 |
| Mounting Hole Center to Center Width (inch) | 3-1/2 |
| Number of Mount Holes | 4 |
| Overall Dimensions LxWxH (in) | 13-1/4x19-1/2x15-5/8 |
| Overall Height (inch) | 15-5/8 |
| Overall Length (inch) | 13-1/4 |
| Overall Width (inch) | 19-1/2 |
| Reel Color | Black |
| Reel Diameter (inch) | 6 |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width (inch) | 8 |
| Seal Material | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size (inch) | 1/2 |
| Swivel Inlet Thread Size (in) | 1/2 - 14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size (inch) | 3/8 |
| Swivel Outlet Thread Size (in) | 3/8 - 18 |
| Swivel Outlet Type | NPT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Lightweight hand-crank hose reels with tubular-bases are designed for lighter duty applications that require longer lengths of hose. The tubular-base allows the inlet hose to be fed through the center of the tube frame to protect the hose. The open drum design provides smooth, even hose wrapping around the drum. A drag brake or tension brake prevents freewheeling or de-spooling during operation, transport, or storage. These steel reels with corrosion-resistant finish mount on the floor, wall, bench, or on a truck. Lightweight hand-crank hose reels with tubular-bases are used with air and water hoses for washdowns, agricultural spraying, and in maintenance/repair operations. Consider psi requirements when selecting a hose reel for specific applications.
Feature
Hand Crank Hose Reel Air Garden Pre-Rinse Washdown Water Hose Capacity 100 ft (3/8 in I.D.) 5 000 psi Overall Height 15 5/8 in Overall Length 13 1/4 in Overall Width 19 1/2 in Reel Material Steel Reel Finish Powder Coated Drive Type Hand Crank Enclosed No Includes Hose No Mounting Location Bench Floor Truck Wall Reel Color Black Includes Gooseneck No Hose Reel Type Free Standing Hose Reel Vehicle Mount Hose Reel Wall Mount Hose Reel Swivel Material BrassUlasan Produk
