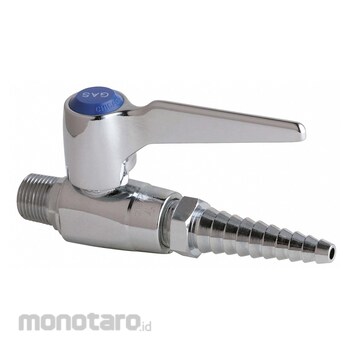

CHICAGO FAUCETS Manual Ball Valves
#Grup produk P109425874
Spesifikasi
| UNSPSC | 40141607 |
|---|---|
| Ball Material | Chrome Plated Brass |
| Body Material | Brass |
| Body Seal Material | PTFE |
| Body Style | Inline |
| Connection Type | MNPT x Barb |
| Handle Material | Zinc |
| Maximum Pressure (psi) | 125 CWP |
| Pipe Size (inch) | 3/8 |
| Port | Standard |
| Seat Material | PTFE |
| Standards | ANSI Z21.15B-2006 |
| Stem Material | 303 Stainless Steel |
| Stem Type | Positive Retained |
| Temperature Range (°F) | 40 to 140 |
| Valve Structure | 2-Piece |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Threaded x threaded Schedule 80 fittings are threaded on all connection ends. Female threads are on the inside of a fitting. Male threads are on the outside of a fitting and screw into the female threads. Threaded connections use PTFE tape to secure seal. Schedule 80 fittings have thicker walls than Schedule 40, but not as thick as Schedule 100.
Feature
Ball Valve Body Material Brass Body Style Inline 2-Piece Pipe Size 3/8 in Connection Type MNPT x Barb Standard Port Max Pressure 125 psi CWP Temp Range 40 Degrees to 140 Degrees F Ball Material Chrome Plated Brass Seat Material PTFE Stem Type Positive Retained Handle Type Lever with Air and Gas Index Buttons Handle Material Zinc Stem Material 303 Stainless Steel Body Seal Material PTFEUlasan Produk
