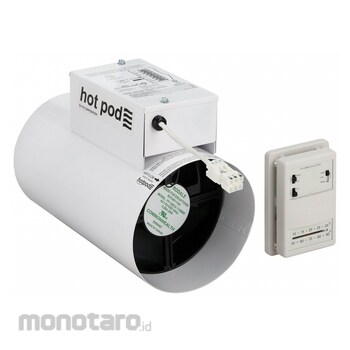

HOTPOD Inline Duct Fans
#Grup produk P109424334
Spesifikasi
| UNSPSC | 40101604 |
|---|---|
| Airflow @ 0.000 in SP (cfm) | 130 |
| Application | General Purpose |
| Duct Diameter (inch) | 6 |
| Frequency (Hz) | 60 |
| Heating Capacity (BtuH) | 1707; 3413 |
| High-Efficiency Motor | No |
| Housing Material | Galvanized Steel |
| Includes | 2 Stage Heat/ 1 Stage Cool Hardwired Low Voltage Thermostat; Integrated Control Board |
| Manufacturer Part Number | HP6-1000120-2T |
| Maximum Inlet Air Temperature (°F) | 115 |
| Motor Enclosure | Totally Enclosed |
| Motor IP Rating | None |
| Mounting Orientation | Horizontal |
| Nameplate Voltage (VAC) | 120 |
| Number of Speeds | 1 |
| Overall Height (inch) | 8-3/8 |
| Overall Length (inch) | 10.5 |
| Power (W) | 500; 1,000 |
| Speed Controllable | No |
| Standards | ETL US/C |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Heater inline duct fans install into ductwork and help to supplement the existing heating system. Their low thermal output makes them best suited for single-room applications. They include both a fan and heating elements, making them a plug-and-play heating solution.
Feature
In-line Duct Fan Heater Airflow @ 0.000 in SP 130 cfm Duct Diameter 6 in Heating Capacity 1707 BtuH 3413 BtuH Motor Output Power 500 W 1 000 W Motor IP Rating None Nameplate Voltage 120V AC Overall Height 8 3/8 in Overall Length 10.5 in Application General Purpose High-Efficiency Motor No Speed Controllable No Housing Material Galvanized Steel Motor Speed 1 400 RPM Airflow @ Static Pressure 40 cfm @ 0.125 in SP 90 cfm @ 0.100 in SP Control Voltage 120 V Current 8.33/4.17 AUlasan Produk
