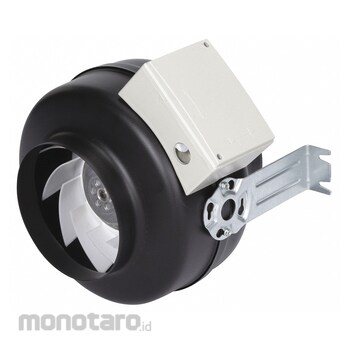

DAYTON Inline Duct Fans
#Grup produk P109424291
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp5.599.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40101604 |
|---|---|
| Application | General Purpose |
| High-Efficiency Motor | No |
| Housing Material | Steel |
| Maximum Inlet Air Temperature (°F) | 104 |
| Motor Enclosure | Totally Enclosed |
| Motor IP Rating | IP54 |
| Mounting Orientation | Horizontal or Vertical |
| Nameplate Voltage (VAC) | 120 |
| Number of Speeds | 1 |
| Phase | 1 |
| Speed Control Included | Yes |
| Speed Controllable | Yes |
| Standards | cULus |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
General purpose inline duct fans install into existing ductwork to create increased airflow and improve efficiency. They are commonly used for general ventilation, temperature control, humidity control, and the removal of unwanted odors.
Feature
In-Line Duct Fan For Fan Type Tubeaxial Airflow @ 0.000 in SP 1 038 cfm Duct Diameter 12 in Motor Output Power 298.3 W Motor IP Rating IP54 Nameplate Voltage 120V AC Phase 1 Number of Speeds 1 Overall Width 12 in Application General Purpose High-Efficiency Motor No Housing Material Steel Motor Speed 2 780 RPM Includes Cord Mounting Bracket Maximum Inlet Air Temperature 104 Degrees F Speed Control Included Yes Speed Controllable Yes Bearing Type Ball BearingDokumentasi Produk
