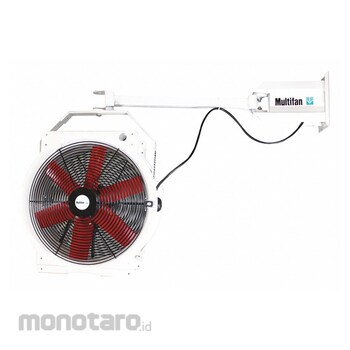

MULTIFAN Kipas Angin Dinding Industrial
#Grup produk P109424097
Spesifikasi
| UNSPSC | 40101602 |
|---|---|
| AMPS | 3.6 |
| Air Flow (CFM) | 4,765 |
| Assembly Required | Yes |
| Bearing Type | Sealed Ball |
| Blade Diameter (inch) | 20 |
| Blade Material | Polypropylene |
| Depth (inch) | 15 |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Cord Length (ft) | 10 |
| Fan Housing Material | Polypropylene |
| Fan Mounting Location | Wall with Dock Arm |
| Frequency (Hz) | 60 |
| Guard Material | Steel |
| Height (inch) | 25 |
| Includes | Steel Suspension Arm; Wall Mount Bracket |
| Maximum Ambient Temperature (°F) | 104 |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor HP (HP) | 1/3 |
| Motor Insulation | Class F |
| Motor Type | Permanent Split Capacitor |
| Number of Blades | 6 |
| Number of Speeds | 1 |
| Oscillation | Non-Oscillating |
| Phase | 1 |
| Product Type | Corrosion-Resistant Industrial Fan |
| Rotation Speed (rpm) | 1600 |
| Shaft Dia. (inch) | 35/64 |
| Sound Level (dBA) | 56 |
| Standards | cUL; ErP; CE; OSHA |
| Thermal Protection | Auto |
| Voltage (V AC) | 120 |
| Wattage | 432 |
| Wheeled Base | Stationary |
| Width (inch) | 25 |
| Wire Guard Finish | Black Powder Coated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Insert x threaded fittings are barbed or inserted on one end with threading on the other end. The insert end fits inside flexible polyethylene tubing and secures with a worm drive clamp. Female threads are on the inside of a fitting. Male threads are on the outside of a fitting and screw into the female threads. Threaded connections use PTFE tape to secure seal.
Feature
Corrosion-Resistant Industrial Fan Blade Dia 20 in Stationary Non-Oscillating 1 Speeds Voltage 120V AC 1 Phase CFM High 4765 Motor HP 1/3 hp Motor RPM 1600 Operating Amps 3.6 Fan Mounting Location Wall with Dock Arm Fan Accessory Style Standard Fan RPM 1600 Sound Level 56 dBA Max Ambient Temp 104 Degrees F Hz 60 Hz Watts 432 Motor Type Permanent Split Capacitor Drive Type Direct Drive Outside Dia 25 in Height 25 in Width 25 in Max Depth 15 in Cord Length 10 ft.Ulasan Produk
