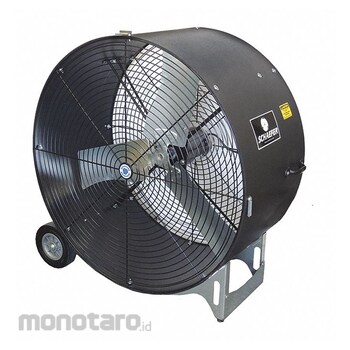

SCHAEFER Kipas Angin Duduk Industrial Mobile & Stationary
#Grup produk P109423937
Sebelum PPN:
Rp26.999.900 - Rp30.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40101602 |
|---|---|
| Assembly Required | No |
| Bearing Type | Ball, Permanently Lubricated and Sealed |
| Blade Diameter (inch) | 36 |
| Depth (inch) | 19-3/4 |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Housing Material | Polyethylene |
| Fan Mounting Location | Floor |
| Frequency (Hz) | 60 |
| Guard Material | Steel |
| Height (inch) | 39-3/4 |
| Maximum Ambient Temperature (°F) | 104 |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor HP (HP) | 1/2 |
| Motor Type | Permanent Split Capacitor |
| Number of Blades | 3 |
| Oscillation | Non-Oscillating |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Thermal Protection | Auto |
| Wheeled Base | Mobile |
| Width (inch) | 40-3/4 |
| Wire Guard Finish | Black Powder Coated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Class 300 threaded fittings connect with medium- to high-pressure (300-3000 psi) pipe. Threaded pipe fittings use PTFE tape to secure seal.
Feature
Standard-Duty Industrial Fan Blade Dia 36 in Mobile Non-Oscillating 2 Speeds Voltage 115V AC 1 Phase CFM High 11 000 CFM Low 7700 Air Velocity @ 20 ft 600/450 fpm Motor HP 1/2 hp Motor RPM 1075/850 Operating Amps 5.2/3.5 Fan Mounting Location Floor Fan Accessory Style Standard Fan RPM 1075/850 Sound Level 77 dBA Max Ambient Temp 104 Degrees F Hz 60 Hz Watts 485/328 Motor Type Permanent Split Capacitor Drive Type Direct Drive Outside Dia 37-1/4 in Height 39 3/4 inUlasan Produk
