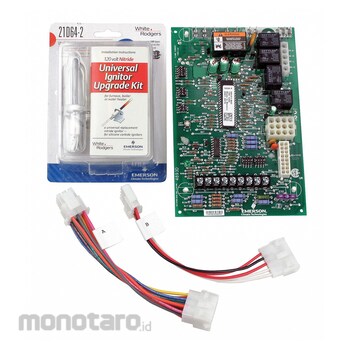

WHITE-RODGERS Ignition Controls
#Grup produk P109423478
Sebelum PPN:
Rp5.099.900 - Rp8.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Automatic Reset Time (hour) | 1 |
|---|---|
| For Fuel Type | LP; Natural Gas |
| Frequency (Hz) | 50/60 |
| Lock Out Time (minute) | 5 |
| Main Valve Current Output (A) | 1.5 |
| Maximum Operating Temperature (°F) | 175 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Retries | 2 |
| Operating Temperature Range (°F) | -40 to 175 |
| Thermostat Anticipator Setting | No Thermostat Anticipator |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Hot surface ignition controls use a resistive heating element that heats up, ignites the fuel, and starts the combustion process. They are similar to spark-based ignition systems but do not need fuel and are quieter due to the lack of moving components or fuel burn.
Feature
Integrated Furnace Control Product Type Integrated Furnace Control Maximum Operating Temperature 175 Degrees F Minimum Operating Temperature -40 Degrees F Lock Out Time 5 min Pre-Purge Time 30 sec Number of Retries 2 Main Valve Current Output 1.5 A Flame Sensor Current Output 0.1 uA Ignition Cycle Time 90 seconds (HSI) 30 seconds (pre-purge) 15 seconds (post-purge) Automatic Reset Time 1 hr Compatible with Brand Amana ICP Trane YorkUlasan Produk
