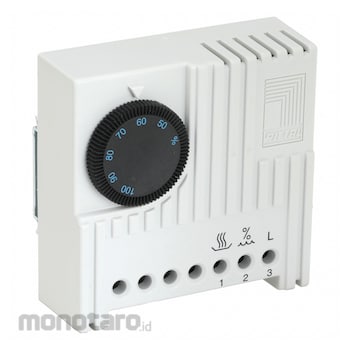

RITTAL Humidity Controls
#Grup produk P109421090
Spesifikasi
| UNSPSC | 41112301 |
|---|---|
| Ambient Voltage (VDC) | 24 to 48 |
| Color | Gray |
| Contact Form | SPST |
| Control Range (%) | 50 to 100 |
| Current Rating (A) | 5 |
| Dehumidifier Control Compatibility | Not Dehumidifier Control Compatible |
| Dehumidifier Control Compatible | No |
| Housing Material | Polycarbonate |
| Humidifier Control Compatibility | Humidifier Control Compatible |
| Humidifier Control Compatible | Yes |
| Humidity Differential (%) | 0 |
| Includes | DIN Rail; Mounting Hardware |
| Includes Outdoor Temperature Sensor | Outdoor Temperature Sensor Not Included |
| Input Voltage (VDC) | 24 to 48 |
| Manufacturer Part Number | 3118000 |
| Maximum Operating Temperature (°F) | 140 |
| Mounting Location | Rail Mount |
| Outdoor Temperature Sensor | No |
| Overall Depth (inch) | 1-3/8 |
| Overall Height (inch) | 2-3/4 |
| Overall Width (inch) | 2-3/4 |
| Product Type | Hygrostat |
| Standards | CAN/CSA-E60073-1:13; UL 60730-1; UL 60730-2-13A |
| Switch Action | Close on Rise; Open on Fall |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Nickel-plated brass push-to-connect tube fittings are suitable for air and non-potable water applications. Brass, an alloy of copper and zinc, is strong and resists corrosion from water, heat, acids, and minerals. The nickel plating increases corrosion and wear resistance.
Feature
Hygrostat Product Type Hygrostat Dehumidifier Control Compatibility Not Dehumidifier Control Compatible Humidifier Control Compatibility Humidifier Control Compatible Control Range 50 Percent to 100 Percent Humidity Differential 4 Percent Input Voltage 24 to 48V DC Switch Action Close on Rise Open on Fall Contact Form SPST Current Rating 5 A Housing Material Polycarbonate Includes Outdoor Temperature Sensor Outdoor Temperature Sensor Not IncludedUlasan Produk
