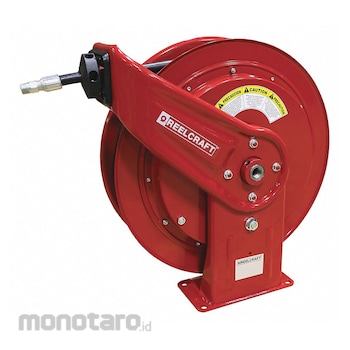

REELCRAFT Grease Spring-Return Hose Reels
#Grup produk P109418892
Sebelum PPN:
Rp22.999.900 - Rp39.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40142121 |
|---|---|
| Base Motion Type | Stationary |
| Corrosion-Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Hose Capacity (in I.D.) | 3/8 |
| Hose Cover Material | Synthetic Rubber |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Type | NPT |
| Hose Inside Dia. (inch) | 3/8 |
| Hose Outside Dia. (inch) | 3/4 |
| Hose Reel Primary Application | Grease |
| Hose Reel Type | Ceiling; Floor; Vehicle; Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Includes | Hose; Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Maximum Operating Pressure | 4800 |
| Maximum Operating Temperature (°F) | 210 |
| Minimum Operating Temperature (°F) | 32 |
| Mount Hole Diameter (inch) | 1/2 |
| Number of Mount Holes | 4 |
| Reel Color | Red |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size (inch) | 1/2 |
| Swivel Outlet Thread Size (in) | 1/2 - 14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Standard grease spring-return hose reels are formed from high-grade steel with structural forms and gussets for added strength in demanding applications. These high-pressure (over 3000 psi) reels mount to the floor, wall, ceiling, or a bench, and include a guide arm that adjusts to seven positions and standard high-pressure SAE 100 R2T two-wire braid hose. These standard grease hose reels and grease hoses are used in aircraft maintenance, automotive service centers, and transmission shops.
Feature
Spring Return Hose Reel Grease 4 800 psi Hose Capacity 75 ft (3/8 in I.D.) Drive Type Spring Return Enclosed No Includes Hose Yes Hose Inside Dia 3/8 in Hose Length 75 ft Reel Material Carbon Steel Mounting Location Ceiling Floor Truck Wall Speed Limited Retraction No Overall Height 20 1/4 in Overall Length 19 3/4 in Overall Width 8 1/4 in Corrosion-Resistant Yes For Dual Hose No Hose Color Red Hose Cover Material Synthetic Rubber Hose Fitting A Gender MaleUlasan Produk
