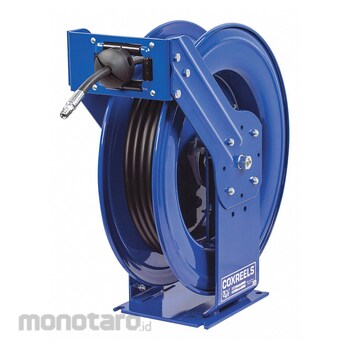

COXREELS Grease Spring-Return Hose Reels
#Grup produk P109418874
Sebelum PPN:
Rp33.999.900 - Rp36.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40142121 |
|---|---|
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion-Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Type | NPT |
| Hose Reel Primary Application | Grease |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | Nitrile |
| Includes | Hose; Hose Guard; Hose Stop |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Maximum Operating Temperature (°F) | 190 |
| Minimum Operating Temperature (°F) | -40 |
| Mount Base Height (inch) | 9 |
| Mount Base Width (inch) | 8 |
| Mount Hole Diameter (inch) | 1/2 |
| Mounting Hole Center to Center Height (inch) | 8 |
| Mounting Hole Center to Center Width (inch) | 7 |
| Number of Guide Arms | Double Arm |
| Number of Mount Holes | 4 |
| Overall Dimensions LxWxH (in) | 24x9-3/8x25-1/2 |
| Overall Height (inch) | 25-1/2 |
| Overall Length (inch) | 24 |
| Overall Width (inch) | 9-3/8 |
| Pedestal Type | Dual Pedestal |
| Reel Color | Blue |
| Reel Diameter (inch) | 24 |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width (inch) | 9-3/8 |
| Spiral Hose Guard | No |
| Standards | CE |
| Swivel Inlet Gender | Female |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Truck-mounted grease spring-return hose reels are built with an extra-large chassis, dual-pedestal-style arms, and a dual-axle support system that reduces vibrations during use. The steel housing is powder-coated for corrosion resistance and includes external fluid paths with brass 90° full-flow NPT swivel inlets with nitrile seals. These high-pressure (over 3000 psi) reels mount to a truck and include an adjustable guide arm. These grease hose reels include SAE 100R16 #1 or #2 wire braid hose suitable for grease applications. Truck-mounted hose reels with grease hose are suitable for on- and off-road applications, on utility vehicles, and for construction sites.
Feature
Spring Return Hose Reel Grease 5 000 psi Hose Capacity 100 ft (1/4 in I.D.) Drive Type Spring Return Enclosed No Includes Hose Yes Hose Inside Dia 1/4 in Hose Length 100 ft Reel Material Steel Mounting Location Ceiling Floor Truck Wall Speed Limited Retraction No Overall Height 25 1/2 in Overall Length 24 in Overall Width 9 3/8 in Corrosion-Resistant Yes For Dual Hose No Hose Color Black Hose Cover Material Synthetic Rubber Hose Fitting A Gender MaleUlasan Produk
