USA SEALING Globe Valves
#Grup produk P109418397
Spesifikasi
| UNSPSC | 40141611 |
|---|---|
| Body Material - Valves | 316 Stainless Steel |
| Bonnet Style | Threaded |
| Connection Type - Valves | FNPTxFNPT |
| Handle Material | Cast Iron |
| Inlet to Outlet Length - Valves (inch) | 3-7/16 |
| Item - Globe Valves | Globe Valve |
| Max. Air Pressure (psi CWP) | 200 |
| Max. Fluid Pressure - Valves | 200 |
| Max. Steam Pressure - Valves | 80 |
| Maximum Air Temperature (°F) | -4 to 356 |
| Maximum Fluid Temperature - Valves (°F) | 356 |
| Pipe Size - Valves (inch) | 1 |
| Seal Material | PTFE |
| Shape | Straight |
| Stem Material | 316 Stainless Steel |
| Top of Handle to Inlet Center - Valves (inch) | 4-33/100 |
| Valve Class | Class 200 |
| Valve Handle Design | Hand Wheel |
| Valve Stem Design | Non-Rising |
| Wedge Material | 316 Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

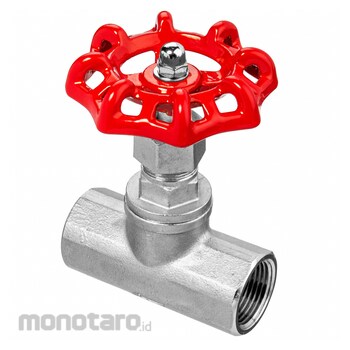

316 stainless steel globe valves feature molybdenum-alloyed construction and are preferred for use in marine environments. 316 stainless steel offers high resistance to pitting corrosion. Globe valves are named for their spherical body shapes. Each features a hand wheel and threaded stem that causes a disc-shaped plug inside the valve to open or shut off the flow of air, fluid, or gas. FNPT thread connection.
Feature
Globe Valve Pipe Size - Valves 1/2 in Connection Type - Valves FNPT x FNPT Shape Straight Body Material - Valves 316 Stainless Steel Media - Valves Oil Water Valve Stem Design Non-Rising Valve Handle Design Hand Wheel Max Fluid Temp - Valves 356 Degrees F Max Air Pressure 200 psi CWP Max Fluid Pressure - Valves 200 psi Max Steam Pressure - Valves 80 psi Inlet to Outlet Length - Valves 2 5/8 in Top of Handle to Inlet Center - Valves 3 7/16 in Valve Class Class 200Ulasan Produk
