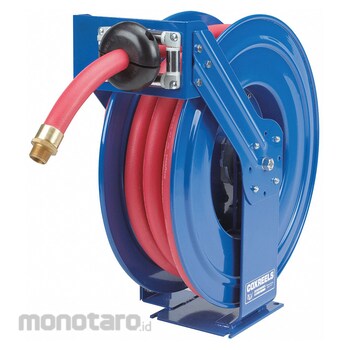

COXREELS Gas Spring-Return Hose Reels
#Grup produk P109417538
Spesifikasi
| UNSPSC | 40142121 |
|---|---|
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion-Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Fitting Size (inch) | 1x1 |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Hose Capacity (ft) | 35 |
| Hose Capacity (in I.D.) | 1 |
| Hose Color | Red |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration (in MNPT) | 1 |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size (inch) | 1 |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size (inch) | 1 |
| Hose Fitting B Type | NPT |
| Hose Inside Dia. (inch) | 1 |
| Hose Length (ft) | 35 |
| Hose Outside Dia. (inch) | 1-1/2 |
| Hose Reel Primary Application | Fuel |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Includes | Hose; Hose Stop |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Maximum Operating Pressure | 300 |
| Maximum Operating Temperature (°F) | 190 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Base Height (inch) | 9 |
| Mount Base Width (inch) | 8 |
| Mount Hole Diameter (inch) | 1/2 |
| Mounting Hole Center to Center Height (inch) | 8 |
| Mounting Hole Center to Center Width (inch) | 7 |
| Number of Guide Arms | Double Arm |
| Number of Mount Holes | 4 |
| Overall Dimensions LxWxH (in) | 24x10x25-1/2 |
| Overall Height (inch) | 25-1/2 |
| Overall Length (inch) | 24 |
| Overall Width (inch) | 10 |
| Pedestal Type | Dual Pedestal |
| Reel Color | Blue |
| Reel Diameter (inch) | 24 |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width (inch) | 10 |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Standards | CE |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size (inch) | 1 |
| Swivel Inlet Thread Size (in) | 1 - 11-1/2 |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size (inch) | 1 |
| Swivel Outlet Thread Size (in) | 1 - 11-1/2 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dual-pedestal gas spring-return hose reels have a sturdy dual-pedestal with a dual-axle support system to increase stability and reduce vibration during use. The heavy-duty steel reels are powder-coated for corrosion resistance and have solid brass 90° full-flow NPT swivel inlets. These low-pressure (up to 500 psi) reels mount on the floor, wall, ceiling, bench, or on trucks, and include adjustable guide arms. Dual-pedestal gas hose reels connect gas hoses to gasoline for use with fuel trucks, in fueling stations, and on construction sites.
Feature
Spring Return Hose Reel Fuel 300 psi Hose Capacity 35 ft (1 in I.D.) Drive Type Spring Return Enclosed No Includes Hose Yes Hose Inside Dia 1 in Hose Length 35 ft Reel Material Steel Mounting Location Ceiling Floor Truck Wall Speed Limited Retraction No Overall Height 25 1/2 in Overall Length 24 in Overall Width 10 in Corrosion-Resistant Yes For Dual Hose No Hose Color Red Hose Cover Material Synthetic Rubber Hose Fitting A Gender MaleUlasan Produk
