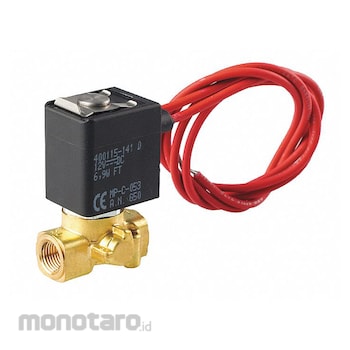

ASCO Fuel Oil and Gas Solenoid Valves
#Grup produk P109416812
Spesifikasi
| UNSPSC | 40141605 |
|---|---|
| Ambient Temperature Range (°F) | -22 to 140 |
| Application | For Control of Commercial and Industrial Gas Pilot Controls |
| Body Material - Valves | Brass |
| BtuH | 9000 |
| Center Line Pipe Center Size (inch) | 1-13/16 |
| Coefficient of Volume | 0.16 |
| Coil Enclosure | Open Frame |
| Coil Insulation Class | F |
| Electrical Connections (in) | 18 Leads |
| Environmental Rating - Valves | Indoor; Outdoor |
| Frequency (Hz) | 60 |
| Manufacturer Part Number | U8256A091V |
| Max. Operating Pressure Differential Air/Inert Gas | 200 |
| Max. Operating Pressure Differential Water | 200 |
| Maximum Fluid Temperature (°F) | 180 |
| Maximum Operating Pressure Differential | 65 |
| Min. Operating Pressure Differential | 0 |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Orifice Dia. (inch) | 7/64 |
| Overall Height (inch) | 2-3/32 |
| Overall Length (inch) | 1-3/4 |
| Overall Width (inch) | 1 |
| Pipe Size - Valves (inch) | 1/8 |
| Seal Material - Valves | FKM |
| Standards | CSA; NSF Certified; UL |
| Valve Configuration | Normally Closed |
| Valve Ways and Positions | 2-Way/2-Position |
| Voltage (V AC) | 24 |
| Wattage (W) | 6.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Brass compression tube fittings with standard sleeves grab the tubing as the nut is tightened, creating the seal.
Feature
Fuel Gas Solenoid Valve Fuel Gas Solenoid Valve 2-Way/2-Position Normally Closed Media - Valves Fuel Gas Pipe Size - Valves 1/8 in Min Operating Pressure Differential 0 psi Max Operating Pressure Differential Air/Inert Gas 200 psi Max Operating Pressure Differential Water 200 psi Indoor Outdoor Voltage 24V AC Coefficient of Volume 0.16 Body Material - Valves Brass Coil Insulation Class F Seal Material - Valves FKM Max Operating Pressure Differential 65 psiUlasan Produk
