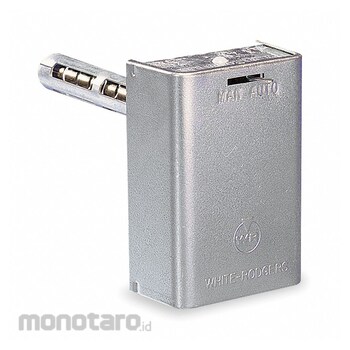

WHITE-RODGERS Fan & Limit Controls
#Grup produk P109412870
Spesifikasi
| UNSPSC | 39121549 |
|---|---|
| Application | Fan and Limit Control |
| Contact Form | SPDT |
| Differential Adjustability | Adjustable |
| Fan Temperature Control Range (°F) | 50 to 265 |
| Inductive Amps @ 120V (A) | 6 |
| Inductive Amps @ 240V (A) | 10 |
| Limit Control Temperature Range (°F) | 100 to 300 |
| Maximum Fan Control Temperature (°F) | 265 |
| Maximum Limit Control Temperature (°F) | 300 |
| Maximum Temperature Differential Setting (°F) | 25 |
| Minimum Fan Control Temperature (°F) | 50 |
| Minimum Limit Control Temperature (°F) | 100 |
| Minimum Temperature Differential Setting (°F) | 15 |
| Mounting | Plenum Mount |
| Overall Depth (inch) | 1-5/8 |
| Overall Height (inch) | 4-1/4 |
| Overall Width (inch) | 2-7/8 |
| Product Type | Fan and Limit Control |
| Reset Type | Automatic Reset |
| Standards | CSA Certified; UL Listed |
| Switch Action | Fan - Close on RiseLimit - Open on Rise |
| Switch Closing Temperature (°F) | 100; 265 |
| Switch Opening Temperature (°F) | 50; 300 |
| Temperature Differential (°F) | 15; 25 |
| Temperature Differential Range (°F) | 15 to 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PVC, also known as polyvinyl chloride, is a synthetic plastic polymer with a rigid structure. PVC resists corrosion and most chemicals. CPVC is similar to PVC, but has been chlorinated. It is similar to PVC in chemical resistance, but is more ductile, and is capable of withstanding higher temperatures. Polypropylene is a durable and flexible thermoplastic polymer. Polypropylene valves are often lightweight and easy to install, and are also resistant to corrosion.
Feature
Fan and Limit Control Application Fan and Limit Control Mounting Plenum Mount Contact Form SPDT Switch Action Fan - Close on Rise Limit - Open on Rise Reset Type Automatic Reset Fan Minimum Control Temperature 50 Degrees F Fan Maximum Control Temperature 265 Degrees F Limit Maximum Control Temperature 300 Degrees F Limit Minimum Control Temperature 100 Degrees F Differential Adjustability Adjustable Maximum Temperature Differential Setting 25 Degrees FUlasan Produk
