SUPCO Fan & Limit Controls
#Grup produk P109412852
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Application | Limit Control |
| Contact Form | SPST |
| Input Voltage (VAC) | 120; 240 |
| Insertion Length (inch) | 3-1/8 |
| Mounting | Board Mount |
| Overall Height (inch) | 2-3/4 |
| Overall Width (inch) | 1-7/8 |
| Product Type | Limit Thermostat |
| Reset Type | Automatic Reset |
| Resistive Amps @ 120V AC (A) | 15 |
| Resistive Amps @ 240V AC (A) | 10 |
| Standards | UL Listed |
| Switch Action | Open on Rise |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

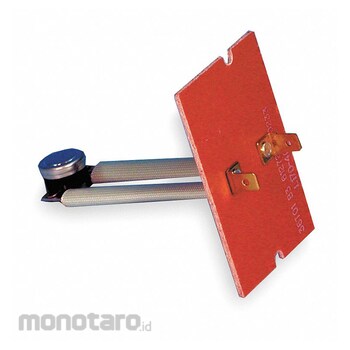

Plenum limit controls mount through the wall of a duct or furnace plenum and turn the fan off when the trigger temperature is reached. They feature a large base with notches or holes for mounting hardware to pass through and hold them in place. This provides the temperature probe with a solid base to withstand high airflow. They are commonly used as protection devices to turn systems on or off when temperatures exceed or drop below their setpoint.
Feature
Plenum Thermostat Product Type Plenum Thermostat Application Limit Control Contact Form SPST Switch Action Open on Rise Switch Opening Temperature 210 Degrees F Switch Closing Temperature 170 Degrees F Insertion Length 3 1/8 in Input Voltage 120V AC 240V AC Overall Height 3 in Overall Width 1 7/8 in Series SHL Reset Type Automatic Reset Element Type Insertion Resistive Amps @ 120V AC 15 A Resistive Amps @ 240V AC 10 A Inductive Amps @ 120V 3 A Inductive Amps @ 240V 1.5 AUlasan Produk
