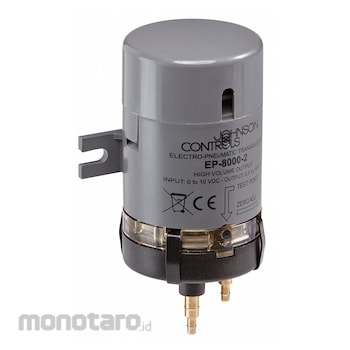

JOHNSON CONTROLS Electro-Pneumatic Transducers
#Grup produk P109412533
Spesifikasi
| UNSPSC | 41112107 |
|---|---|
| Action Type | Direct Acting |
| Air Connections (in) | 5/32 or 1/4 Barb |
| Air Consumption (sfcm) | 0.022 |
| Control Air Pressure | 18 to 25 |
| Depth (inch) | 2 |
| Height (inch) | 3-11/32 |
| Input Type | Voltage |
| Input Voltage | 0-10VCD |
| Linearity | 5% Maximum of Output Span Between 3 to 15 psig |
| Max. Safe Air PSI | 25 |
| Maximum Ambient Temperature (°F) | 122 |
| Output | Low Volume |
| Output Range | 1 to 18 |
| Product Type | Electronic Pneumatic Transducer |
| Temperature Coefficient (psig/°F) | 0.05 |
| Width (inch) | 1-25/32 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Electronic Pneumatic Transducer Voltage Input Type Direct Acting Max Safe Air PSI 25 psi Control Air Pressure 18 to 25 psi Air Connections 5/32 in or 1/4 in Barb Height 3 11/32 in Width 1 25/32 in Depth 2 in Air Consumption 0.022 scfm Max Ambient Temp 122 Degrees F Input Voltage 0-10VCD Output Low Volume Output Range 1 to 18 psi Temp Coefficient 0.05 psig/ Degrees F Linearity 5 Percent Maximum of Output Span Between 3 to 15 psigUlasan Produk
