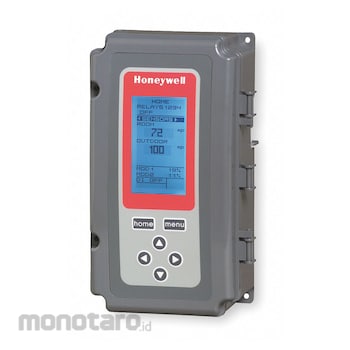

HONEYWELL Electronic Temperature Controls
#Grup produk P109412454
Sebelum PPN:
Rp9.799.900 - Rp24.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Ambient Humidity (% RH) | 5 to 95 |
| Contact Form | SPDT |
| Display Type | Digital |
| Horsepower @ 120V AC (hp) | 1/2 |
| Horsepower @ 240V AC (hp) | 1/2 |
| Housing Color | Gray |
| IP Rating | IP65 |
| Input Voltage (VAC) | 120, 240, 24 |
| Maximum Control Temperature (°F) | 248 |
| Maximum Temperature Differential Setting (°F) | 150 |
| Minimum Control Temperature (°F) | -40 |
| Minimum Temperature Differential Setting (°F) | 1 |
| Number of Stages | Single |
| Number of Time Cycles per Day | 2 |
| Overall Depth (inch) | 3 |
| Overall Height (inch) | 8-1/8 |
| Overall LengthxWidth (inch) | 8-1/8x4-3/8 |
| Overall Width (inch) | 4-3/8 |
| Power Consumption (V/A) | 10 |
| Product Type | Temperature Control |
| Sensing Bulb Diameter (inch) | 1/4 |
| Sensing Bulb Length (inch) | 2 |
| Standards | C-Tick; cUL; UL 60730-1 |
| Switch Action | Close on Rise; Open on Rise |
| Temperature Control Function | Heat and Cool |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single-stage electronic temperature controls connect to sensors and send control signals in response to temperature changes. They connect to a single HVAC component and regulate the operation of this component when the temperature exceeds or drops below the setpoint.
Feature
Temperature Control Temperature Control Function Heat and Cool Product Type Temperature Control Number of Stages Single Contact Form SPDT NEMA Rating 1 IP Rating IP65 Maximum Control Temperature 248 Degrees F Minimum Control Temperature -40 Degrees F Maximum Temperature Differential Setting 150 Degrees F Minimum Temperature Differential Setting 1 Degrees F Display Type Digital Input Voltage 120V AC 240V AC 24V AC Variable Output Voltage Yes Overall Height 8 1/8 inUlasan Produk
