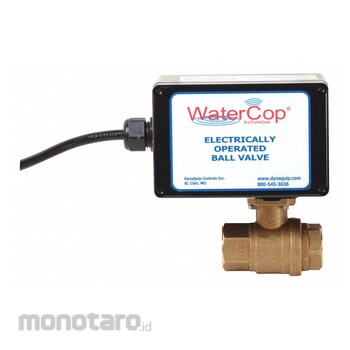

WATERCOP Electrically Actuated Ball Valves
#Grup produk P109412393
Sebelum PPN:
Rp7.199.900 - Rp8.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141607 |
|---|---|
| Ambient Temperature Range (°F) | -35 to 165 |
| Ball Material | Chrome Plated Brass |
| Body Material | Lead Free Brass |
| Body Seal Material | Viton |
| Body Style | 2-Way |
| Connection Type | FNPTxFNPT |
| Max. Pressure (psi CWP) | 600 |
| Maximum Operating Pressure Differential | 200 |
| Mount | Direct / Integral |
| Port | Full |
| Seat Material | RTFE |
| Standards | AB1953; ANSI 372; ISO 5211; Louisiana HB.471; Maryland HB.372 Lead Free; NEMA 4; NSF61g; Reduction of Lead in Drinking Water Act S.3874; RoHs; Section 116875 of the California Health & Safety Code; Vermont S.0152 Lead Free |
| Stem Material | Nickel Plated Brass |
| Stem Type | Blowout Proof |
| Temperature Range (°F) | -20 to 400 |
| Valve Structure | 2-Piece |
| Voltage (V AC) | 120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These electronic actuated ball valves help in the automation of process control valves. Each is designed to allow easy in-line maintenance and can be wired in parallel. Brass valves offer malleability and corrosion resistance, with added durability. They are stronger and harder than copper, yet more malleable than steel and iron, allowing them to resist cracking. They can withstand extremely high temperatures, and will not rust.
Feature
Electronic Actuated Ball Valve Body Material Lead Free Brass 2-Way 2-Piece Pipe Size 1/2 in Connection Type FNPT x FNPT Full Port Voltage 120V AC Max Pressure 600 psi CWP Max Operating Pressure Differential 200 psi Temp Range -20 Degrees to 400 Degrees F Ball Material Chrome Plated Brass Ambient Temp Range -35 Degrees to 165 Degrees F Seat Material RTFE Stem Type Blowout Proof Stem Material Nickel Plated Brass Body Seal Material VitonUlasan Produk
