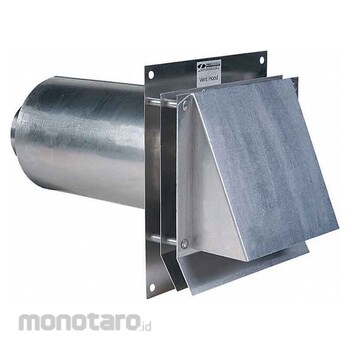

FIELD CONTROLS Vent Cap
#Grup produk P109410836
Spesifikasi
| UNSPSC | 40101503 |
|---|---|
| Backdraft Damper Included | No |
| Base Height (inch) | 12 5/8 |
| Base Width (inch) | 10 5/8 |
| Color | Silver |
| Compatible with Brand | Field Controls |
| Compatible with Manufacturer Model Number | SWH-4 |
| Connection Type | Press Fit |
| Duct Shape | Round |
| End Type | Plain |
| For Nominal Duct Diameter (inch) | 4 |
| Inlet Diameter (inch) | 6 |
| Inside Diameter (inch) | 3 |
| Material | Aluminium |
| Material Thickness (ga) | 19 |
| Overall Depth (inch) | 8 1/2 |
| Overall Length (inch) | 14 7/8 |
| Overall Width x Height (inch) | 10 5/8x12 5/8 |
| Rain Cap Style | Smooth |
| Screen Included | Yes |
| Standards | ANSIZ21.47; NFPA211; NFPA54 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Wall and soffit vent caps protect against weather and pest intrusion. They feature hoods or caps that block rain from entering the vent while allowing air to flow freely through the connected duct.
Feature
Vent Cap For Nominal Duct Diameter 4 in Gas Appliance Category Not Applicable For Duct Height Not Applicable For Duct Width Not Applicable Inlet Diameter 6 in Material Aluminum Overall Length 14 7/8 in Product Type Vent Hood Inside Diameter 3 in Material Thickness 19 ga Weight 6 lb Maximum Pressure Rating Not Applicable Maximum Temperature Rating Not Applicable Seal Material Not Applicable Standards ANSIZ21.47 NFPA211 NFPA54 Finish Not Applicable Color SilverUlasan Produk
