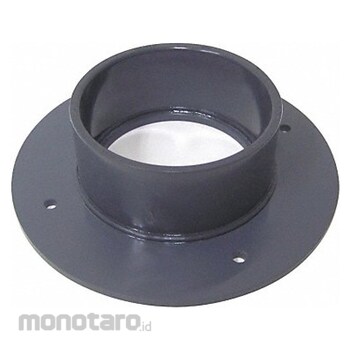

PLASTIC SUPPLY Corrosion-Resistant PVC Duct
#Grup produk P109408974
Sebelum PPN:
Rp1.699.900 - Rp4.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141901 |
|---|---|
| Adapter Type | Angle Flange Adapter |
| Connection Type | Socket |
| End Type | Socket |
| For Duct Shape | Round |
| Material | PVC |
| Material Thickness (inch) | 0.3 |
| Maximum Pressure Rating (in WC) | 10 |
| Maximum Temperature Rating (°F) | 140 |
| Standards | ASTM D1784; Cell Class 12454 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flanges connect to the ends of duct pipes and provide a removable mounting point for other flanged duct pieces. This non-permanent connection allows them to be disassembled and reassembled for maintenance or repairs.
Feature
Flange Adapter For Nominal Duct Diameter 4 in Inlet Diameter 4 1/2 in Material PVC Product Type Angle Flange Adapter Material Thickness 0.3 in Overall Length 8 1/2 in Maximum Pressure Rating 10 in wc Weight 1.25 lb Flange Inner Diameter 4 1/8 in Flange Outer Diameter 8 1/2 in Inside Diameter 4 1/2 in Number of Holes on Flange 4 Overall Width 8 1/2 in Bolt Circle Diameter 6 3/4 in Minimum Pressure Rating Not Applicable Shape Straight Outlet Diameter 8 1/2 inUlasan Produk
