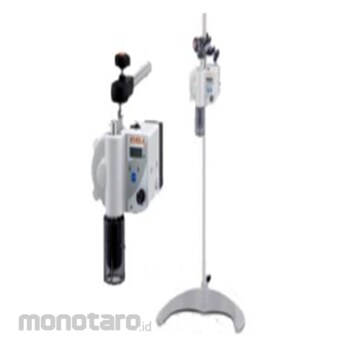

EYELA Overhead Stirrer
#Grup produk P109408178
Spesifikasi
| Overall Dimensions (WxDxH) (mm) | 130x155(172)x158(173) |
|---|---|
| Material | Metal |
| Type | Standard |
| Accessory Function | Slow Up/Down, Free Clamp |
| Chuck Part | Drill Chuck |
| Chuck Speed Range without Load (rpm) | 20-1200 |
| Display | Volume Setting, Digital Display 4 Digits |
| Maximum Torque (N m) | 0.245, 1200rpm (2.5kgf·cm 1200rpm) |
| Motor Output Power (W) | DC Brushless Motor 35 |
| Operating Ambient Temperature Range (°C) | 5-35 |
| Power Supply Input (A) | 2 |
| Rated Power Supply (VA) | 200 AC100V 50/60Hz |
| Rated Torque (N m) | 0.098 (1kgf·cm) / 3000rpm |
| Rotation Control | Speed Feedback Control, Rotation speed setting |
| Safety features | Electric Current Limiting Circuit, Thermal Protector, Chuck Cover |
| Set Content | Manual Book |
| Shaft Diameter used (mm) | φ1~ 10 |
| Torque Indication | 20, 40, 60, 80% Against Maximum Torque, Over Display *Except Standard Type And Inverted Type Attachment Type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
You can set a speed according to the application. Turn the speed control knob on the control panel to set to a speed you want
Feature
Small sized, highperfomance vacuum pump, Small, high perfomance modelUlasan Produk
