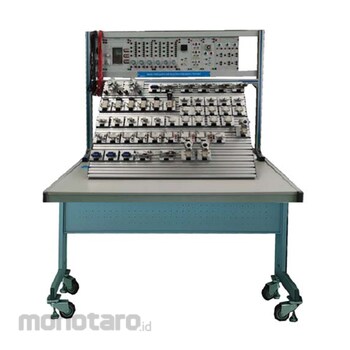

GOTT Basic Pneumatic and Electro Pneumatic Trainer

Module Included :Service Unit, Air distributor, Single acting cylinder, Double acting cylinder, Pressure sequence valve , Time delay valve (N/C) ,Time delay valve (N/O), Pressure release valve , 3/2-WAY valve (N/C PUSH-BUTTON), 3/2-WAY valve select S/W, 5/2-WAY valve select S/W, 3/2-WAY L/S valve , 3/2-WAY directional L/S, One way flow control valve , Quick exhaust valve, Pressure gauge , 3/2-WAY valve air-act, spring-return, 3/2-WAY valve air-act, spring-return ,5/2-WAY valve air-act, spring-return, 5/2-WAY valve air-act, air-return, 4/2-WAY valve air-act, air-return, 4/3-WAY manual valve, Dual-Pressure (AND) valve , Shuttle (OR) valve , Counter, Plastic hose (1M) T-Joint, Hose cutter, 3/2-WAY solenoid valve(N/C) , 3/2-WAY solenoid valve(N/O), 5/2-WAY single solenoid valve, 5/2-WAY double solenoid valve, Pressure switch, Relay3-fold, Time relay, Counter, Push-button switch set, Inductive sensor , Capacitive sensor , Optical sensor, Electric proximity switch, Electric limit switch (left), Electric limit switch (right), Electric distributor, DC Power supply, Single Phase AC Power Supply, Emergency Switch, Mini Air Compressor, Conneting Lead, Safety Test Lead. Experiment Topics :Reversing circuit of Single Acting Cylinder, Single Acting Cylinder speed control circuit, Reversing circuit of Double Acting Cylinder, Double Acting Cylinder one−way speed governing circuit, Double Acting Cylinder bidirectional speed governing circuit, Quick Exhaust Valve application circuit, Double Acting Cylinder Synchronous action circuit, Multicylinder sequence action circuit, Relay Controlled Sequence action circuit, Interlocking Circuit, Pressure sequence valve control circuit, OR and AND gate shuttle valve application circuit, Secondary Pressure control circuit ,Delay Circuit
