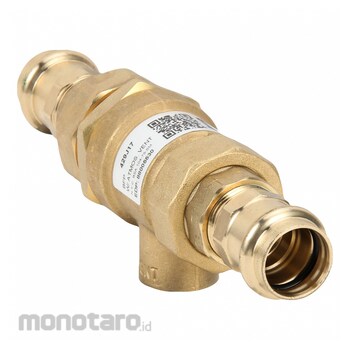

WATTS REGULATOR Dual Check Backflow Preventers
#Grup produk P109405436
Spesifikasi
| UNSPSC | 40141622 |
|---|---|
| Application | General Purpose |
| Body Material | Brass |
| Cap to Inlet Center (inch) | 1-15/16 |
| Connection | Press x Press |
| Cracking Pressure | 25 |
| Flow (GPM) | 18 |
| Flow Design | Dual |
| Height (inch) | 2-9/16 |
| Length (inch) | 4-1/2 |
| Manufacturer Part Number | 3/4 9DM2-PRESS |
| Maximum Steam Pressure | Not Rated |
| Maximum Temperature (°F) | 250 |
| Maximum Water Pressure | 175 |
| Mechanism and Body Design | Inline |
| Mounting Orientation | Horizontal; Vertical |
| Product Type | Check Valve |
| Seal | Rubber |
| Seat Material | Stainless Steel |
| Series | 9D |
| Size (inch) | 3/4 |
| Standards | ASSE 1012; BSA 104-75-SM; CSA B64 |
| Width (inch) | 2-9/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Continuous-pressure dual-check backflow preventers are used in smaller supply lines and piping systems that handle continuous liquid flow for applications such as boiler feed lines and dedicated industrial service lines.
Feature
Item - Check Valves Check Valve Flow Design Dual Mechanism and Body Design Inline Body Material - Valves Brass Pipe or Tube Size 3/4 in Connection Type Press x Press Cracking Pressure 25 psi Mounting Orientation Horizontal Vertical Seal Material Rubber Max Temp - Valves 250 Degrees F Max Water Pressure - Valves 175 psi Max Steam Pressure - Valves Not Rated Seat Material Stainless Steel Flow - Valves 18 gpm Application - Valves General Purpose Length 4 1/2 in Width 2 9/16 inUlasan Produk
