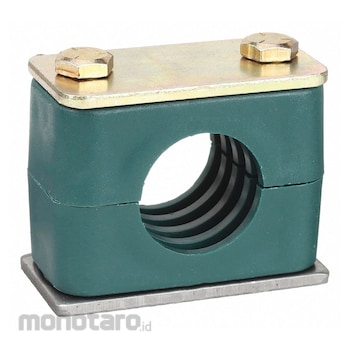

ZSI Cushioned Beta Clamps for Tube & Pipe
#Grup produk P109404297
Spesifikasi
| UNSPSC | 31162906 |
|---|---|
| Bolt Length (inch) | 4 |
| Bore Style | Ribbed |
| Bottom Plate Material | Steel |
| Clamp Material | Steel |
| Clamp Type] | Beta Clamp Assembly |
| Cushion Material | Polypropylene |
| For Number of Lines | 1 |
| Maximum Operating Temperature (°F) | 194 |
| Minimum Operating Temperature (°F) | -22 |
| Mount Type | Weld-On |
| Resistance Properties | Shock Absorbing; Vibration Damping |
| Top Plate Material | Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These beta clamps have a bore hole with a textured core to hold pipe and tube in applications with high vibration. The ribbed lining of the core dampens vibration, shock, and noise along the pipe or tube axis. They are often used in hydraulic applications.
Feature
Vibration-Dampening Beta Clamp Clamp Bore Style Ribbed Clamp Material Steel Clamp Type Beta Clamp Assembly Cushion Material Polypropylene For Maximum Outside Diameter 11/16 in For Number of Lines 1 For Pipe Size 3/8 in Load Capacity 2 500 lb Maximum Operating Temperature 194 Degrees F Mount Type Weld-OnUlasan Produk
