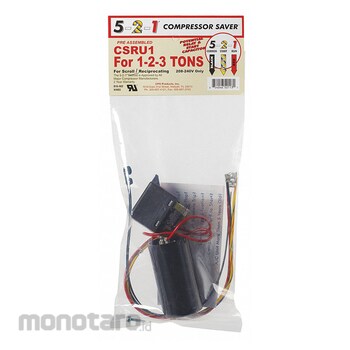

5-2-1 COMPRESSOR SAVER Compressor Hard Start Kits
#Grup produk P109403252
Spesifikasi
| UNSPSC | 39121515 |
|---|---|
| Capacitor Microfarad Rating (MFD) | 88-108 |
| Control Voltage (VAC) | 208 to 240 |
| Current Rating (A) | 35 |
| Drop Out Voltage (V) | 40 to 90 |
| For Compressor Type | ReciprocatingScroll |
| For Cooling Capacity Range (t) | 1 to 3 |
| Frequency (Hz) | 60 |
| Includes | Capacitor; Mounting Screws; Potential Relay; Zip-Tie |
| Increased Torque Rating (oz-inch) | 300 |
| Instant Restart | Instant Restart |
| Manufacturer Part Number | CSRU1 |
| Maximum Capacitor Voltage (VAC) | 240 |
| Maximum Horsepower Rating (hp) | 5 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Horsepower Rating (hp) | 4 |
| Number of wires | 3 Wire |
| Overall Depth (inch) | 2 |
| Overall Height (inch) | 5-1/2 |
| Overall Width (inch) | 1-3/4 |
| Phase | Single |
| Pick Up Voltage (V) | 162 to 175 |
| Product Type | Compressor Saver |
| Relay Type | Electronic Potential Relay; Mechanical Potential Relay |
| Standards | CE Listed; cUL Listed |
| Sub Brand | Hard Start Kit |
| Voltage Sensing | Not Voltage Sensing |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Hard start kits integrate with a refrigerant compressor and provide additional energy to help it start and reduce wear from excess power draw. Once the compressor starts, the kit stops boosting the system and allows it to run unassisted. They are commonly used for non-OEM service to help older systems function more efficiently or bolster their starting capability.
Feature
Compressor Saver Capacitor Microfarad Rating 88-108 MFD For Cooling Capacity Range 1 to 3 ton For Compressor Type Reciprocating Scroll Relay Type Electronic Potential Relay Mechanical Potential Relay Instant Restart Instant Restart Control Voltage 208 to 240V AC Maximum Horsepower Rating 5 hp Minimum Horsepower Rating 4 hp Number of Wires 3 Wire Product Type Compressor Saver Includes Capacitor Mounting Screws Potential Relay Zip-Tie Pick Up Voltage 162 to 175VUlasan Produk
