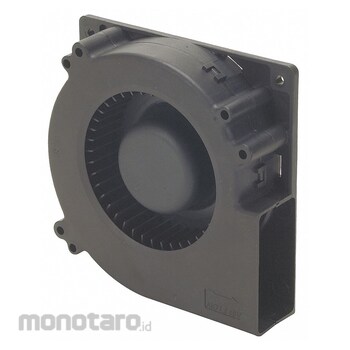

DAYTON Compact Blowers
#Grup produk P109403094
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 40101604 |
|---|---|
| Amps (A) | 0.38 |
| Bearing Type | Ball |
| Blade Material | Polybutylene |
| CFM @ 0.000-In. SP (cfm) | 35.9 |
| Color | Black |
| Depth (inch) | 1-1/4 |
| Electrical Connection - Fans | Lead Wires |
| Environmental Applications | Equipment Cooling |
| Fan Cord Length (ft) | 1 |
| Fan Shape | Square |
| Height (inch) | 4-3/4 |
| Housing Material | PBT Plastic |
| Lead Length (inch) | 12 |
| Maximum Ambient Temperature (°F) | 158 |
| Motor Insulation | Class A |
| Mounting Eye O.C. (inch) | 4-1/8 |
| Mounting Position | Vertical |
| Power (W) | 9.1 |
| Sound Level | 53.8 |
| Speed (rpm) | 2500 |
| Standards | CE; cUL; RoHS; UL (E19455) |
| Voltage (V) | 24DC |
| Width (inch) | 4-3/4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Schedule 80 pipe has thicker walls than Schedule 40, but not as thick as Schedule 160 pipe. Pipe's exterior includes threading on both connection ends. These connections use PTFE tape to secure seal. Medium-pressure (300-999 psi) pipe and nipples connect with fittings. *Grainger's product supplier has certified that products marked "Made in USA" below comply with "Made in USA" requirements in accordance with FTC rules and guidance.
Feature
Compact Blower Fan Shape Square 4 3/4 in Height 4 3/4 in Width 1 1/4 in Depth Fan Cord Length 1 ft 35.9 cfm CFM @ 0.000-In. SP Watts 9.1 W Voltage 24V DC - Hz 0.38 A Amps Electrical Connection - Fans Lead Wires 12 in Lead Length Sound Level 53.8 Mounting Position Vertical Bearing Type Ball 2 500 RPM RPM Motor Insulation Class A Max Ambient Temp 158 Degrees F Blade Material Polybutylene Housing Material PBT Plastic Black Standards CE cUL RoHS UL (E19455)Ulasan Produk
