GORE Chemical-Resistant PTFE Flange Gaskets
#Grup produk P109402536
Sebelum PPN:
Rp1.099.900 - Rp3.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 31181503 |
|---|---|
| Binder Material | None |
| Color | White |
| FDA Approved | No |
| Features | Long-Term reliable Sealing |
| For Flange ANSI Class | 150 |
| For Fluid Type | Acids; Alkali; Solvents |
| Gasket Material | ePTFE |
| Gasket Type | Ring Gasket |
| Hardness | Not Rated |
| Includes Mounting Hardware | No |
| Material | Expanded ePTFE |
| Maximum Operating Pressure | 3000 |
| Maximum Operating Temperature (°F) | 600 |
| Metal Detectable | No |
| Minimum Operating Temperature (°F) | -452 |
| Reinforced | No |
| Reinforcement Material | None |
| Resistance Properties | Chemical-Resistant |
| Standards | ASME B16.21; ASME B16.21 GLS ID; ASME B16.21 NPS ID; EN 1514-1; EN 1514-1 GLS ID; EN Standard |
| Thickness (inch) | 1/8 |
| X-Ray Detectable | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

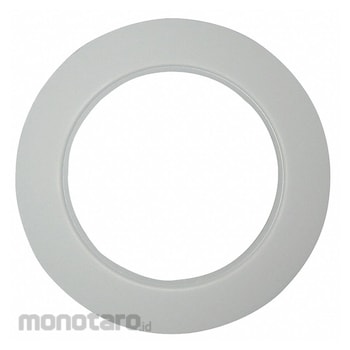

These ePTFE ring gaskets are made of expanded PTFE which is a more compressible form of PTFE that provides a tighter seal. Ring gaskets sit against the internal edge of the flange, around the pipe bore, and inside the bolts. They are typically positioned onto the raised surface of a raised-face (RF) flange. Ring gaskets install by dropping them into the flange fitting without fully disassembling the joint.
Feature
Ring Flange Gasket Gasket Material ePTFE Insert Material None For Pipe Size 8 in For Flange ANSI Class 150 Binder Material None Color White Inside Diameter 8 5/8 in Minimum Operating Temperature -452 Degrees F Maximum Operating Temperature 600 Degrees F Outside Diameter 11 in Thickness 1/8 in Gasket Type Ring Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated Includes Mounting Hardware No X-Ray Detectable NoUlasan Produk
