Continental Chemical Hose Assemblies
#Grup produk P109402411
Sebelum PPN:
Rp9.499.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
UNSPSC | 40142007 |
---|---|
Burst Pressure | 800 |
Hose Color | Black |
Hose Configuration | Coupled Assembly |
Hose Cover Material | EPDM |
Hose Fitting A Material | 316 Stainless Steel |
Hose Fitting B Material | 316 Stainless Steel |
Hose Reinforcement Material | Carbon Steel |
Hose Tube Material | Cross-Linked Polyethylene |
Max. Working Pressure @ 70 F | 200 |
Not Recommended Chemicals | Ammonia (Liquids); Anhydrous Ammonia; Methyl Chloride; Turpentine; Xylene |
Safety Factor | 4:1 |
Static Control Wire | Yes |
Temperature Range (°F) | -40 to 250 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

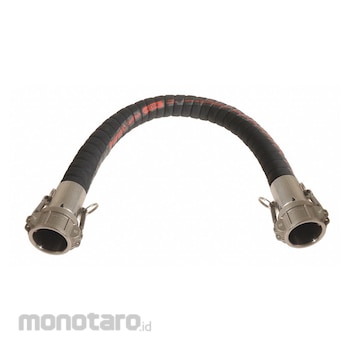

These cross-linked polyethylene (XLPE) chemical hose assemblies are used for transferring industrial chemicals in pressure, gravity-flow, and suction applications. The hoses have type C and E cam-lock fittings on their ends. Also known as cam-and-groove fittings, the fittings have a side lever that can be engaged to quickly connect or disconnect the hoses in applications where hoses will be changed frequently. The hoses' tube is made from modified cross-linked polyethylene, which provides excellent high-temperature chemical resistance. The hoses' cover is made from EPDM (ethylene propylene diene monomer), which provides excellent resistance to ozone and abrasion and offers good resistance to heat and chemicals.
Feature
Chemical Hose Assembly Hose Inside Dia 1 in Hose Outside Dia 1 7/16 in Hose Length 20 ft Hose Tube Material Cross-Linked Polyethylene Hose Cover Material EPDM Hose Reinforcement Type Helix Hose Reinforcement Material Carbon Steel Hose Color Black Burst Pressure 800 psi Max Working Pressure @ 70 F 200 psi Safety Factor 4 1 Temp Range -40 Degrees to 250 Degrees F Bend Radius 3 in Hose Configuration Coupled Assembly Hose Fitting A Size 1 in Hose Fitting B Size 1 inUlasan Produk
