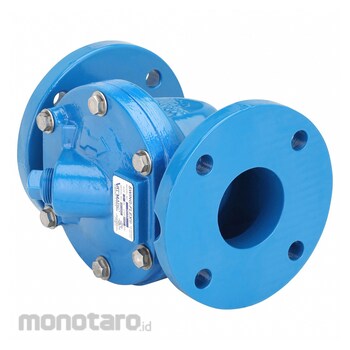

Val-Matic Check Valves
#Grup produk P109402271
Sebelum PPN:
Rp20.999.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Application - Valves | General Purpose |
|---|---|
| Body Material - Valves | Cast Iron |
| Connection Type | Flange x Flange |
| Flow Design | Single |
| Full Flow - Valves | No |
| Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | Not Rated |
| Maximum Temperature - Valves (°F) | 200 |
| Minimum Valve Temperature (°F) | 33 |
| Mounting Orientation | Horizontal; Vertical |
| Seal Material | Metal |
| Standards | ANSI B16.1 Class 125 |
| Valve Body Material | Cast Iron |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Cast iron check valves have heavy-duty bodies that withstand high temperatures.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Swing Flex Body Material - Valves Cast Iron Pipe or Tube Size 3 in Connection Type Flange x Flange Cracking Pressure 0.25 psi Mounting Orientation Horizontal Vertical Seal Material Metal Max Temp - Valves 200 Degrees F Min Temp - Valves 33 Degrees F Max Water Pressure - Valves 250 psi Max Steam Pressure - Valves Not Rated Seat Material Buna-N Flow - Valves 300 gpm Full Flow - Valves NoUlasan Produk
