SSI Check Valves
#Grup produk P109402235
Sebelum PPN:
Rp1.899.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141634 |
|---|---|
| Application - Valves | Process Piping |
| Connection Type | Flange x Flange |
| Flow Design | Single |
| Full Flow - Valves | Yes |
| Item - Check Valves | Check Valve |
| Minimum Valve Temperature (°F) | 60 |
| Mounting Orientation | Horizontal; Vertical |
| Spring Material | Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

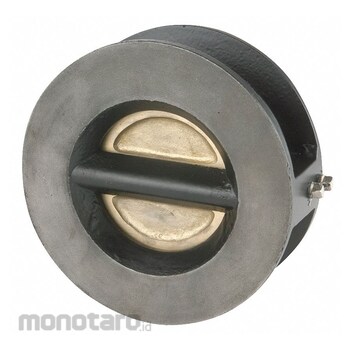

Cast iron check valves have heavy-duty bodies that withstand high temperatures.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Double Disc Body Material - Valves Cast Iron Pipe or Tube Size 8 in Connection Type Flange x Flange Cracking Pressure 0.300 to 1.250 psi Mounting Orientation Horizontal Vertical Seal Material Buna-N Max Temp - Valves 300 Degrees F Min Temp - Valves 60 Degrees F Max Water Pressure - Valves 200 psi @ 250 Degrees F Max Steam Pressure - Valves 200 psi WSP Seat Material Buna-NUlasan Produk
