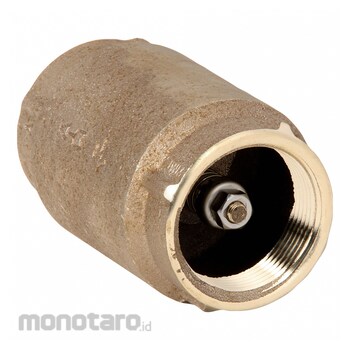

SIMMONS Check Valves
#Grup produk P109402217
Sebelum PPN:
Rp2.399.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141622 |
|---|---|
| Application - Valves | General Purpose |
| Body Material - Valves | Bronze |
| Cap to Inlet Center (inch) | 1-1/2 |
| Connection Type | FNPTxFNPT |
| Flow Design | Single |
| Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Water Pressure - Valves | 400 |
| Maximum Temperature - Valves (°F) | 190 |
| Mechanism and Body Design | Inline Spring |
| Mounting Orientation | Horizontal; Vertical |
| Seal Material | Buna-N |
| Seat Material | Bronze |
| Spring Material | Stainless Steel |
| Standards | Certified Lead Free; NSF 61; NSF/ANSI 372 |
| Valve Body Material | Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Lead-free check valves have brass or bronze construction to comply with low-lead regulations for use with potable water.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Spring Body Material - Valves Bronze Pipe or Tube Size 1 1/2 in Connection Type FNPT x FNPT Cracking Pressure 1 psi Mounting Orientation Horizontal Vertical Seal Material Buna-N Max Temp - Valves 190 Degrees F Max Water Pressure - Valves 400 psi Max Steam Pressure - Valves Not Rated Seat Material Bronze Spring Material Stainless Steel Application - Valves General Purpose Length 2 5/8 inUlasan Produk
