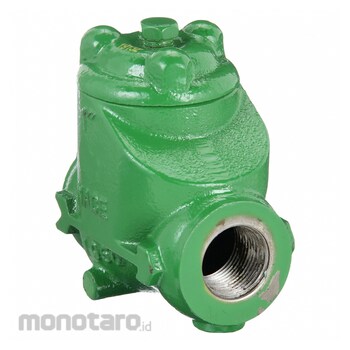

SHARPE VALVES Check Valves
#Grup produk P109402192
Sebelum PPN:
Rp2.499.900 - Rp5.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141634 |
|---|---|
| Application - Valves | General Purpose |
| Connection Type | FNPTxFNPT |
| Cracking Pressure | 0 |
| Flow Design | Single |
| Full Flow - Valves | Yes |
| Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | Not Rated |
| Maximum Temperature - Valves (°F) | 280 |
| Mechanism and Body Design | Inline Swing |
| Minimum Valve Temperature (°F) | 0 |
| Mounting Orientation | Horizontal |
| Seal Material | Viton |
| Seat Material | Viton |
| Standards | NACE MR0175-2009 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ductile iron check valves have heavy-duty construction that withstands vibration. Their ductility makes them more flexible and resistant to impact and cracking than cast iron.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Swing Body Material - Valves Ductile Iron Pipe or Tube Size 1 in Connection Type FNPT x FNPT Cracking Pressure 0 psi Mounting Orientation Horizontal Seal Material Viton Max Temp - Valves 280 Degrees F Min Temp - Valves 0 Degrees F Max Water Pressure - Valves 2 000 psi @ 250 Degrees F Max Steam Pressure - Valves Not Rated Seat Material Viton Flow - Valves 24 gpm Full Flow - Valves YesUlasan Produk
