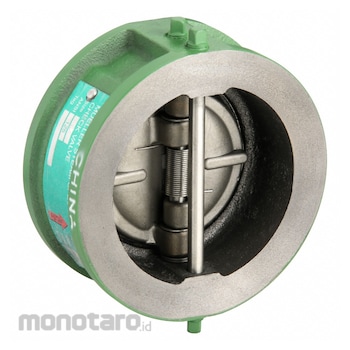

MUELLER STEAM SPECIALTY Check Valves
#Grup produk P109402077
Sebelum PPN:
Rp15.999.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141618 |
|---|---|
| Application - Valves | Process Piping |
| Body Material - Valves | Cast Iron |
| Connection Type | Flanged Wafer x Flanged Wafer |
| Flow Design | Single |
| Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Water Pressure - Valves (psi) | 200 @150°F |
| Maximum Temperature - Valves (°F) | 100 |
| Mechanism and Body Design | Inline Wafer |
| Mounting Orientation | Horizontal; Vertical |
| Seal Material | Buna-N |
| Seat Material | Buna-N |
| Spring Material | 316 Stainless Steel |
| Standards | ANSI; API; FM; UL |
| Valve Body Material | Cast Iron |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Class 150 threaded zinc galvanized steel fittings connect with medium-pressure (300-999 psi) pipe. Threaded pipe fittings use PTFE tape to secure seal.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Wafer Body Material - Valves Cast Iron Pipe or Tube Size 4 in Connection Type Flanged Wafer x Flanged Wafer Mounting Orientation Horizontal Vertical Seal Material Buna-N Max Temp - Valves 100 Degrees F Max Water Pressure - Valves 200 psi @ 150 Degrees F Max Steam Pressure - Valves Not Rated Seat Material Buna-N Spring Material 316 Stainless Steel Application - Valves Process PipingUlasan Produk
