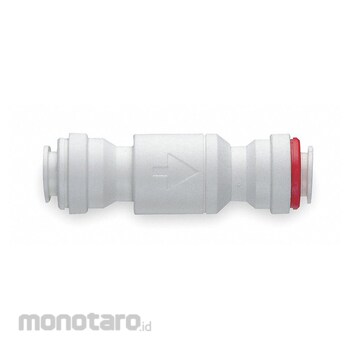

JOHN GUEST Check Valves
#Grup produk P109401935
Spesifikasi
| Application - Valves | General Purpose |
|---|---|
| Body Material - Valves | Acetal Resin Copolymer |
| Connection Type | Push x Push |
| Cracking Pressure | 0.3 |
| Flow Design | Single |
| Full Flow - Valves | Yes |
| Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Water Pressure - Valves | 150 |
| Maximum Temperature - Valves (°F) | 150 |
| Mechanism and Body Design | Inline Spring |
| Minimum Valve Temperature (°F) | 33 |
| Mounting Orientation | Horizontal; Vertical |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Spring Material | Stainless Steel |
| Standards | NSF-51 For Food And FDA For Food And Beverage; NSF-61 For Drinking Water |
| Valve Body Material | Acetal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Plastic check valves are resistant to chemicals and corrosion.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Spring Body Material - Valves Acetal Resin Copolymer Pipe or Tube Size 5/16 in Connection Type Push x Push Cracking Pressure 0.3 psi Mounting Orientation Horizontal Vertical Seal Material EPDM Max Temp - Valves 150 Degrees F Min Temp - Valves 33 Degrees F Max Water Pressure - Valves 150 psi Max Steam Pressure - Valves Not Rated Seat Material EPDM Spring Material Stainless SteelUlasan Produk
