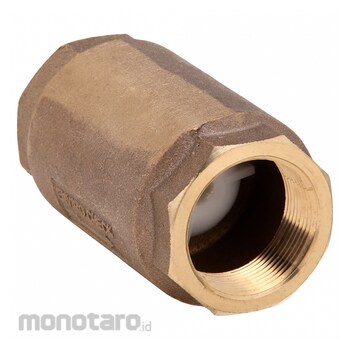

CAMPBELL Check Valves
#Grup produk P109401810
Spesifikasi
| Application - Valves | General Purpose |
|---|---|
| Body Material - Valves | Brass |
| Connection Type | FNPTxFNPT |
| Cracking Pressure | 0.5 |
| Flow Design | Single |
| Full Flow - Valves | No |
| Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | Not Rated |
| Minimum Valve Temperature (°F) | 35 |
| Mounting Orientation | Horizontal; Vertical |
| Seat Material | Bronze |
| Spring Material | Stainless Steel |
| Standards | ASTM B62 |
| Valve Body Material | Brass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Brass check valves are suited for applications with non-potable water systems. They have strong, malleable bodies that provide better heat and corrosion resistance than plastic valves.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Spring Body Material - Valves Brass Pipe or Tube Size 1 1/2 in Connection Type FNPT x FNPT Cracking Pressure 0.5 psi Mounting Orientation Horizontal Vertical Seal Material Nitrile Max Temp - Valves 180 Degrees F Min Temp - Valves 35 Degrees F Max Water Pressure - Valves 400 psi Max Steam Pressure - Valves Not Rated Seat Material Bronze Spring Material Stainless Steel Flow - Valves 25 gpmUlasan Produk
