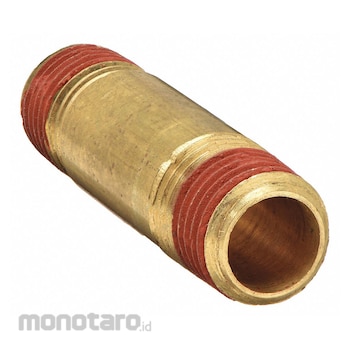

Parker Brass & Bronze Pipe & Pipe Nipples
#Grup produk P109400510
Spesifikasi
| UNSPSC | 40142318 |
|---|---|
| Application | Air; Natural Gas; Non-Potable Water; Propane |
| Fitting Compatibility | Schedule 80 |
| Manufacturer Part Number | 8-8 MCN-B |
| Material | Brass |
| Maximum Operating Pressure (psi) | 3900 @100°F |
| Maximum Operating Temperature (°F) | 3900 |
| Maximum Steam Pressure | 3900 |
| Metal Pipe Construction | Seamless |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Pipe Size (inch) | 1/2 |
| Overall Length (inch) | 1-1/2 |
| Schedule | Schedule 80 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ANSI B1.20.1; ANSI B31.1; ANSI B31.3 |
| Thread Configuration | Threaded on Both Ends |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Instrumentation pipe is precision machined and threaded on both connection ends for leak-free connections between fittings and instruments. Pipe's exterior includes threading on both connection ends. These connections use PTFE tape to secure seal. High-pressure (1000-3000 psi) pipe nipples connect with fittings.
Feature
Nipple Application Air Non-Potable Water Inside Diameter 3/8 in Material Brass Material Grade C37700 Maximum Operating Pressure 1000 psi Maximum Operating Temperature 250 Degrees F Maximum Steam Pressure 1000 psi Metal Pipe Construction Seamless Minimum Operating Temperature -65 Degrees F Nominal Pipe Size 1/4 in Outside Diameter 35/64 in Overall Length 2 1/2 in Side A Connection Type Threaded Side A Gender Male Side A Thread Type NPT Side B Connection Type ThreadedUlasan Produk
