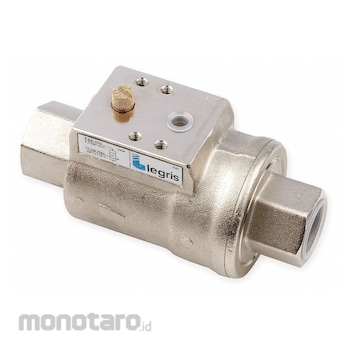

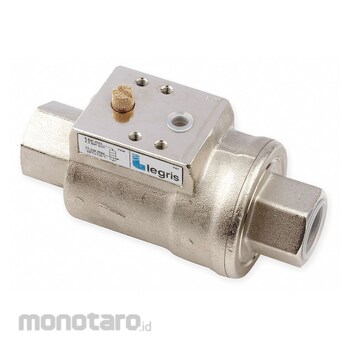

LEGRIS Axial Valves
#Grup produk P109398215
Spesifikasi
| UNSPSC | 40142606 |
|---|---|
| Body Material | Nickel Plated Brass |
| Connection Type | FNPTxFNPT |
| Hex Size (mm) | 33 |
| Maximum Pressure | 150 |
| Overall Height (inch) | 2.76 |
| Overall Length (inch) | 5.31 |
| Pilot Port Size (in BSPP) | 1/8 |
| Pilot Pressure | 60 to 115 |
| Pipe Size (inch) | 3/4x3/4 |
| Seal Material | FKM |
| Temperature Range (°F) | 15 to 275 |
| Valve Configuration | Normally Closed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Designed to overcome the limitations of traditional actuators, LEGRIS axial valves combine the functions of a valve fitted with an actuator. Extremely compact, axial valves need up to 50% less space than actuated valves.
Feature
Axial Valve Connection Type FNPT x FNPT Pipe Size 3/4 in x 3/4 in Valve Configuration Normally Closed Body Material Nickel Plated Brass Max Pressure 150 psi Seal Material FKM Overall Length 5.31 in Overall Height 2.76 in Pilot Port Size 1/8 in BSPP Hex Size 33 mm Pilot Pressure 60 to 115 psi Temp Range 15 Degrees to 275 Degrees FUlasan Produk
