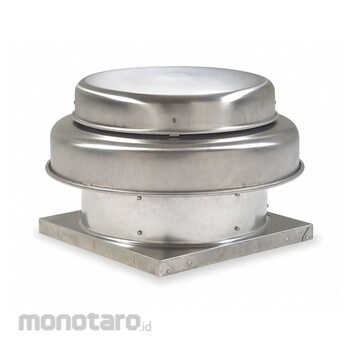

DAYTON Axial Downblast Supply Fans
#Grup produk P109398172
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp20.999.900 - Rp44.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Base Height (inch) | 1-3/4 |
|---|---|
| Base shape | Square |
| Blade Material | Aluminium |
| Drive Type | Direct Drive |
| Features | Fully Rolled Baffle Bead for Stability and Ease of Transport with Spun Aluminium Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure |
| For Air Type | Clean Air |
| Frequency (Hz) | 60 |
| High-Efficiency Motor | No |
| Housing Material | Aluminium |
| Housing Material Fabrication | Spun |
| Includes | NEMA 1 Junction Box |
| Includes Drive Package with Motor | Yes |
| Maximum Inlet Air Temperature (°F) | 120 |
| Mount Type | Roof Curb |
| Number of Blades | 4 |
| Number of Speeds | 1 |
| Standards | AMCA Sound and Air; UL/cUL 705 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This Buna-N/PVC foam rubber insulation covers a 90° elbow fitting. It is factory cut-to-length and preformed to save fabrication time in the field.
Feature
Supply Ventilator Mounting Location Roof Assembly Fully Assembled Blade Diameter 16 in Housing Material Aluminum Exhaust Airflow @ 0.000 in SP 2 920 cfm For High-Static Pressure Applications No High-Efficiency Motor No Maximum Static Pressure 1 in wc Motor Enclosure Totally Enclosed Air Over Motor Horsepower 3/4 hp Nameplate Voltage 208/230/460V AC Number of Speeds 1 Phase 3 Maximum Inlet Air Temperature 120 Degrees F Number of Blades 4 Supply Airflow @ 0.000 in SP 2 920 cfmDokumentasi Produk
