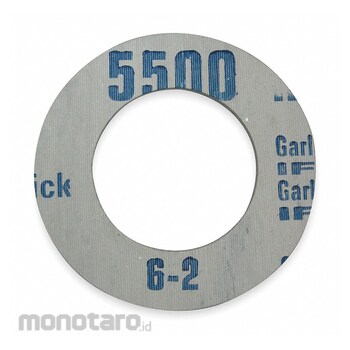

GARLOCK Aramid Gaskets with Oil-Resistant Buna-N Binder
#Grup produk P109397836
Spesifikasi
| Backing Type | Plain |
|---|---|
| FDA Approved | No |
| For Flange ANSI Class | 150 |
| Gasket Type | Ring Gasket |
| Hardness | Not Rated |
| Includes Mounting Hardware | No |
| Metal Detectable | No |
| Minimum Operating Temperature (°F) | -100 |
| Reinforced | No |
| X-Ray Detectable | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Aramid/Buna-N ring gaskets sit against the internal edge of the flange, around the pipe bore, and inside the bolts. They are typically positioned onto the raised surface of a raised-face (RF) flange. Ring gaskets install by dropping them into the flange fitting without fully disassembling the joint.
Feature
Ring Flange Gasket Gasket Material Inorganic Fiber Insert Material None For Pipe Size 4 in For Flange ANSI Class 150 Binder Material Buna-N Color Gray Inside Diameter 4 1/2 in Minimum Operating Temperature -100 Degrees F Maximum Operating Temperature 800 Degrees F Outside Diameter 6 7/8 in Thickness 1/16 in Gasket Type Ring Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated Includes Mounting Hardware No X-Ray Detectable NoUlasan Produk
