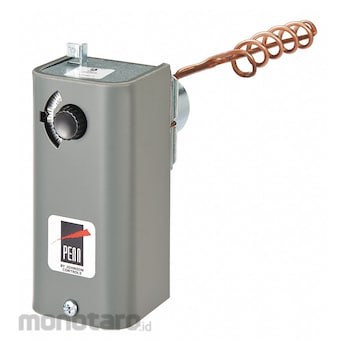

JOHNSON CONTROLS Air-Coil & Bimetal Sensor Temperature Controls
#Grup produk P109397173
Sebelum PPN:
Rp5.699.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Enclosure Color | Gray |
| Locked Rotor Amps @ 120V (A) | 96 |
| Locked Rotor Amps @ 240V (A) | 48 |
| Number of Poles | 1 |
| Sensor Type | Hydraulic Air Coil |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These temperature controls flange-mount in any position into ducts and are ideal for furnace fans, rooftop units, and make-up heaters. Their enclosures are rated NEMA 1 for indoor applications. These controls are compatible with single-stage systems. Single-stage systems have a single output level and allow the system to be either on or off. These controls have an air-coil sensor that monitors and regulates the ambient air temperature. The sensing element is not affected by changes in barometric pressure or cross-ambient conditions.
Feature
Line Volt Mechanical Tstat Thermostat Switch Type SPDT Thermostat Control Range 100 Degrees to 350 Degrees F Thermostat Voltage 24 to 600VAC Full Load Amps @ 120VAC 15A Full Load Amps @ 240VAC 8A Thermostat Programmable No Remote Sensing Capability Yes Thermostat Heating/Cooling Heating/Cooling Thermostat Item Line Voltage Mechanical Thermostat Remote Sensing Bulb Included Yes Switch Action Open on Rise Number of Switches 1 Differential 9 Degrees to 36 Degrees F Height 4-13/32 In.Ulasan Produk
