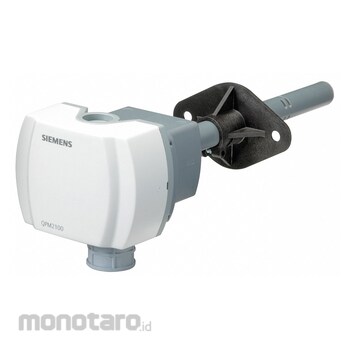

SIEMENS Air Quality Sensors
#Grup produk P109396916
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Air Quality Measurement | CO2 |
| CO2 Accuracy | ±50 ppm + 2% of MV |
| Compatible Building Automation Protocols | BACnet IPBACnet MS/TPLonWorksLoRaWANModbusMP-Bus |
| Display Type | None |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Housing Color | White |
| Housing Material | Polyethylene |
| Includes | Adjustable Probe; Mounting Flange |
| Manufacturer Part Number | QPM2100 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | 32 |
| Output (V) | 0 to 10; 0 to 5 |
| Output (mA) | 4 to 20 |
| Power Required (VAC) | 24 |
| Power Required (VDC) | 15 to 35 |
| Wall Plate Style | Semi-Flush |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Duct air quality sensors are mounted onto or through the wall of an HVAC duct and measure the air quality of the airstream. This provides information on air quality at specific points in the system, allowing users to diagnose air quality issues and regulate the HVAC system for peak efficiency.
Feature
CO2 Duct Sensor Air Quality Measurement CO2 CO2 Accuracy +/-50 ppm + 2 Percent of MV Power Required 24V AC 15 to 35VDC Output 0 to 10V 0 to 5V 4 to 20mA Display Type None Housing Material Polyethylene Housing Color White Minimum Operating Temperature 32 Degrees F Maximum Operating Temperature 122 Degrees F Compatible Building Automation Protocols BACnet IP BACnet MS/TP LonWorks LoRaWAN Modbus MP-Bus For Use With Building Automation Systems Building Automation System CompatibleUlasan Produk
