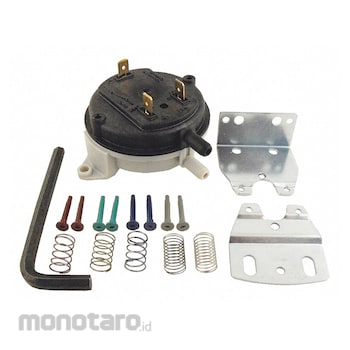

SUPCO Air Pressure Sensing Switches
#Grup produk P109396712
Sebelum PPN:
Rp1.499.900 - Rp1.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121506 |
|---|---|
| Contact Form | SPDT |
| Electrical Connection Type | Plug-In |
| Electrical Rating | 1/10 hp @ 120 to 277V AC125 VA Pilot Duty @ 120V AC28 VA Pilot Duty @ 24V AC |
| For Pressure Type | Negative; Differential |
| Housing Material | Polyethelene |
| Housing Type | Standard Housing |
| Maximum Operating Temperature (°F) | 190 |
| Minimum Operating Temperature (°F) | -40 |
| Mounting Hole Center to Center Distance (inch) | 3-3/16 |
| Mounting Orientation | Horizontal; Vertical |
| Overall Depth (inch) | 1-1/2 |
| Overall Height (inch) | 3-1/4 |
| Overall Width (inch) | 3-1/4 |
| Product Type | Air Pressure Switch |
| Reset Type | Automatic Reset |
| Sample Line Connection (in) | 1/4 Push-On |
| Sample Line Connection Size (inch) | 1/4 |
| Sample Line Connector Type | Push-On |
| Switch Voltage (VAC) | 120 |
| Type of Set Point | Adjustable |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Bronze Y strainers resist corrosion from saltwater and have higher heat and electrical conductivity than most metals. These bronze (red brass) Y strainers protect pumps, control valves, regulators, and other process equipment from contaminants found in water, oil, gas, and steam applications.
Feature
Air Pressure Switch Pressure Setpoint Type Adjustable Pressure Type Differential Negative Mounting Orientation Horizontal Vertical Maximum Pressure Setting 10 in wc Minimum Pressure Setting 0.1 in wc Maximum Differential Pressure Setting Not Applicable Minimum Differential Pressure Setting Not Applicable Sample Line Connection Size 1/4 in Sample Line Connector Type Push-On Electrical Rating 1/10 hp @ 120 to 277V AC 125 VA Pilot Duty @ 120V AC 28 VA Pilot Duty @ 24V ACUlasan Produk
Tidak ada ulasan
