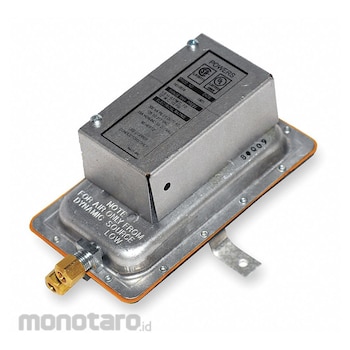

SIEMENS Air Pressure Sensing Switches
#Grup produk P109396697
Spesifikasi
| UNSPSC | 39121538 |
|---|---|
| Application | Clogged or Dirty Filter Detection; High Pressure Detection |
| Contact Form | SPDT |
| Electrical Connection Type | Hardwired |
| Electrical Rating | 15 A Non-Inductive 120 to 277V AC300 VA Pilot Duty @ 120 to 277V AC |
| For Pressure Type | Differential |
| Housing Material | Steel |
| Housing Type | Conduit Box |
| Includes | Ferrules; Nuts |
| Manufacturer Part Number | 141-0574 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°F) | -40 |
| Mounting Hole Center to Center Distance (inch) | 3-7/8 |
| Mounting Hole Diameter (inch) | 3/16 |
| Mounting Orientation | Vertical |
| Number of switches | 1 |
| Overall Depth (inch) | 3-1/4 |
| Overall Height (inch) | 6-1/8 |
| Overall Width (inch) | 3-7/8 |
| Pressure Set Point (in wc) | 0.05 to 1 |
| Product Type | Air Flow Switch |
| Reset Type | Automatic Reset |
| Sample Line Connection Size (inch) | 1/4 |
| Sample Line Connector Type | Integral Compression |
| Standards | CSA Certified 1811M25; UL Listed MFHX File MH9888 |
| Switch Voltage (VAC) | 120 to 277 |
| Switching Differential (in wc) | 0.06 to 0.6 |
| Type of Set Point | Adjustable |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Adjustable set-point pressure switches react to changes in air pressure and create an electrical signal proportional to this change. They feature an adjustable set-point which allows users to change the point at which these switches activate.
Feature
Air Pressure Switch Pressure Setpoint Type Adjustable Pressure Type Differential Mounting Orientation Vertical Maximum Pressure Setting 1 in wc Minimum Pressure Setting 0.05 in wc Maximum Differential Pressure Setting 0.6 in wc Minimum Differential Pressure Setting 0.06 in wc Sample Line Connection Size 1/4 in Sample Line Connector Type Integral Compression Electrical Rating 15 A Non-Inductive 120 to 277V AC 300 VA Pilot Duty @ 120 to 277V AC Input Voltage 120 to 277V ACUlasan Produk
