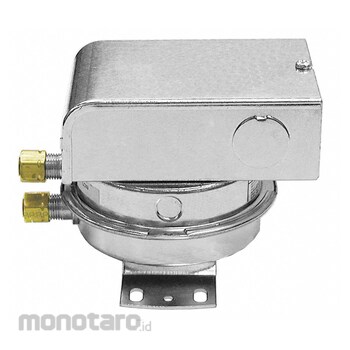

ROBERTSHAW Air Pressure Sensing Switches
#Grup produk P109396679
Sebelum PPN:
Rp1.399.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121506 |
|---|---|
| Application | Air Filtration; Commercial HVAC; Furnace Control; Humidity Detection and Control; Residential HVAC |
| Contact Form | SPDT |
| Electrical Connection Type | Screw Terminals |
| Electrical Rating (A) | 1 Pilot Duty @120 VA, 5 @120 to 277V AC, 5 @28V DC |
| For Pressure Type | Positive; Negative; Differential |
| Housing Material | Stainless Steel |
| Includes | Adjustment Tool; Mounting Hardware |
| Maximum Operating Temperature (°F) | 190 |
| Minimum Operating Temperature (°F) | -40 |
| Mounting Orientation | Vertical |
| Number of switches | 1 |
| Product Type | Air Pressure Switch |
| Sample Line Connection Size (inch) | 1/8; 1/4; 3/8 |
| Standards | CSA Certified LR18754; UL Listed MH6213 |
| Switch Voltage (VAC) | 120; 277 |
| Switch Voltage (VDC) | 28 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Adjustable set-point pressure switches react to changes in air pressure and create an electrical signal proportional to this change. They feature an adjustable set-point which allows users to change the point at which these switches activate.
Feature
Air Pressure Switch Pressure Setpoint Type Adjustable Pressure Type Differential Negative Positive Mounting Orientation Vertical Maximum Pressure Setting 0.5 in wc Minimum Pressure Setting 0.02 in wc Maximum Differential Pressure Setting 0.15 in wc Minimum Differential Pressure Setting Not Applicable Sample Line Connection Size 1/8 in 1/4 in 3/8 in Sample Line Connector Type Integral Compression Electrical Rating 1 A Pilot Duty @ 120 VA 5 A @ 120 to 277V AC 5 A @ 28V DCUlasan Produk
