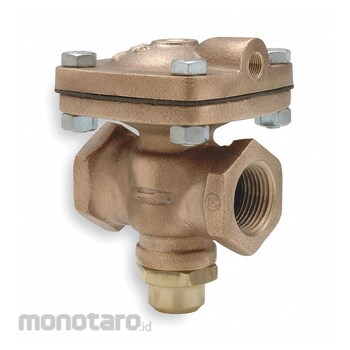

CASH VALVE Air Operated Valves
#Grup produk P109396411
Spesifikasi
| UNSPSC | 40141609 |
|---|---|
| Air Inlet (in FNPT) | 1/8 |
| Body Material | Brass |
| Center Line Pipe Center Size (inch) | 1-15/16 |
| Coefficient of Volume | 2.5 |
| Gasket Material | Buna-N |
| Inlet Pressure | Up to 250 |
| Maximum Fluid Temperature (°F) | 180 |
| Maximum Operating Pressure Differential | 300 |
| Min. Operating Pressure Differential | 0 |
| Orifice Dia. (inch) | 1/2 |
| Overall Height (inch) | 3-13/16 |
| Overall Length (inch) | 1-15/16 |
| Overall Width (inch) | 2-7/8 |
| Pipe Size (inch) | 1/2 |
| Seat Material | 303 Stainless Steel |
| Valve Configuration | Normally Closed |
| Valve Design | 2-Way |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These air-operated valves rely on air pressure against a piston or diaphragm to produce linear or circular movement for operation. They help to provide increased flexibility in application, minimized corrosion in sea water circuits, increased power and speed of operation, and the ability to sense the temperature remote from the valve.
Feature
Air Operated Valve Pipe Size 1/2 in Valve Design 2-Way Valve Configuration Normally Closed Orifice Dia 1/2 in Coefficient of Volume 2.5 Min Operating Pressure Differential 0 psi Max Operating Pressure Differential 300 psi Max Fluid Temp 180 Degrees F Air Inlet 1/8 in FNPT Inlet Pressure Up to 250 psi Body Material Brass Gasket Material Buna-N Seat Material 303 Stainless Steel Center Line Pipe Center Size 1 15/16 in Overall Length 1 15/16 in Overall Width 2 7/8 inUlasan Produk
