ASCO Air Operated Valves
#Grup produk P109396396
Sebelum PPN:
Rp22.999.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141605 |
|---|---|
| Air Inlet (in FNPT) | 1/8 |
| Body Material | Brass |
| Gasket Material | NBR |
| Inlet Pressure (psi) | 30 to 125 |
| Max. Operating Pressure Differential (psi) | 125 |
| Maximum Fluid Temperature (°F) | 180 |
| Seat Material | NBR |
| Valve Configuration | Normally Closed |
| Valve Design | 2-Way |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

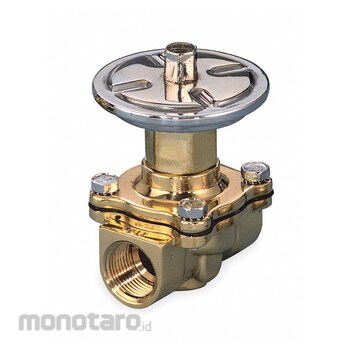

These air-operated solenoid valves feature brass body construction and NBR gaskets. They are designed to mount in any position. Use for lubricated air applications. The sealing members help to keep pilot air pressure variations from affecting valve operation. Normally closed. Pneumatically operated, 30 to 125 psi range.
Feature
Air Operated Valve Pipe Size 3/4 in Valve Design 2-Way Valve Configuration Normally Closed Orifice Dia 3/4 in Coefficient of Volume 5.5 Min Operating Pressure Differential 5 psi Max Operating Pressure Differential 125 psi Max Fluid Temp 180 Degrees F Air Inlet 1/8 in FNPT Inlet Pressure 30 to 125 psi Body Material Brass Gasket Material NBR Seat Material NBR Center Line Pipe Center Size 3 5/8 in Overall Length 2 13/16 in Overall Width 2 5/16 in Overall Height 4 9/32 inUlasan Produk
