Val-Matic Air and Vacuum Release Valves
#Grup produk P109395874
Sebelum PPN:
Rp4.299.900 - Rp99.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141606 |
|---|---|
| Body Material | Cast Iron |
| Connection Type | FNPT |
| Float Material | 316 Stainless Steel |
| Maximum Fluid Temperature (°F) | 250 |
| Min. Pressure | 5 |
| Vacuum Pressure (in.Hg) | 29 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

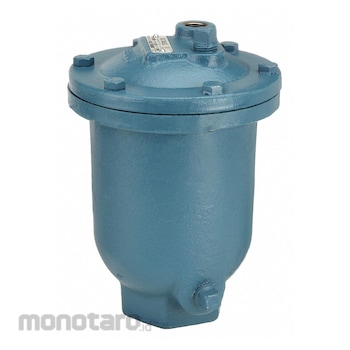

Air release valves feature cast-iron construction and a resilient seal for positive shutoff. Use in water distribution and transmission fire pumps, pressure filters, and hydropneumatic tools.
Feature
Air Release Valve Inlet Size 1 in Outlet Size 1/2 in Application Clean Water Min Pressure 5 psi Max Pressure 150 psi Max Vent Capacity 55 scfm at 150 psi Connection Type FNPT Max Fluid Temp 250 Degrees F Vacuum Pressure 29 in Hg Body Material Cast Iron Float Material 316 Stainless Steel Standards NSF61 ASTM A126 Class BUlasan Produk
