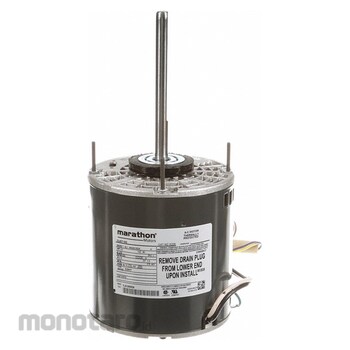

MARATHON MOTORS Direct Drive Blower HVAC AC Motor
#Grup produk P109394811
Sebelum PPN:
Rp4.899.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101602 |
|---|---|
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty cycle | Continuous |
| Frequency (Hz) | 60 |
| Ins. Class | B |
| Maximum Ambient Temperature (°C) | 40 |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Number of Shafts | 1 |
| Phase | Single |
| Standards | CSA (LR2025); UL (E6312) |
| Usable @ 200V | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Permanent split capacitor (PSC) direct drive blower HVAC AC motors have a capacitor that decreases the amount of power consumed for a given load making them more energy efficient than shaded pole motors. They provide smooth, soft, start-ups in fans, blowers, and other compatible HVAC equipment.
Feature
Direct Drive Blower Motor Single Phase Motor Design Permanent Split Capacitor 1/3 HP Nameplate RPM 825 No of Speeds 1 Voltage 230V AC Full Load Amps 2.8 48Y Frame Usable @ 208V No Usable @ 200V No Motor Thermal Protection Auto 60 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Duty Cycle Continuous Lead Length 30 in Motor Enclosure Design Open Air-Over Motor Mounting Type Ring Motor Mounting Position HorizontalUlasan Produk
